| Brand Name: | XBSY |
| Model Number: | ZS |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

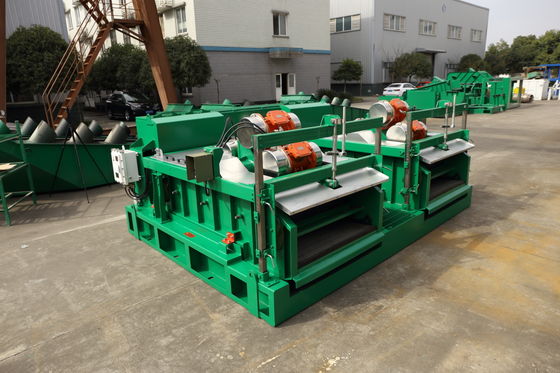

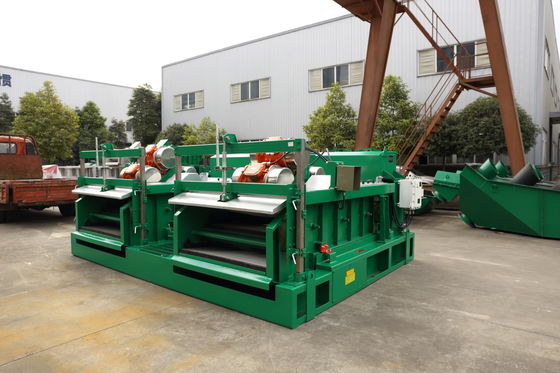

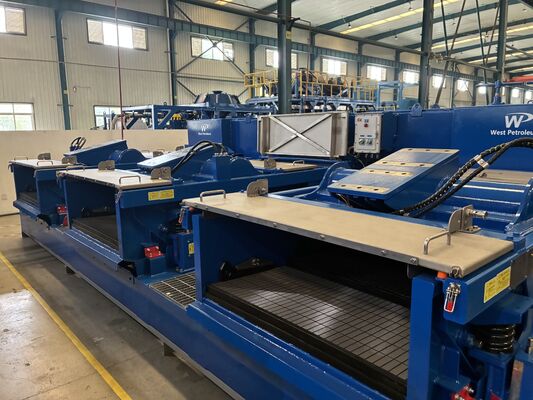

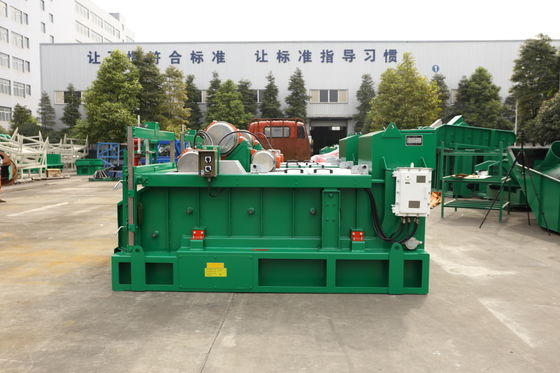

Explosion-Proof Shale Shaker for Oilfield Drilling Mud Solids Control
The ZS-S-5K Explosion-Proof Shale Shaker is designed for drilling mud solids control in oilfield drilling operations, providing reliable solid-liquid separation under demanding working conditions. With Ex d IIB T4 explosion-proof certification and a vibration amplitude of 5.2 mm, it is suitable for continuous operation in harsh drilling environments.
The shaker can handle flow rates of up to 500 m³/h and is equipped with two 2.2 kW vibration motors operating at 3450 RPM to maintain stable vibration and efficient solids removal.
Dual Motion Modes – Provides flexibility for different drilling and solids control conditions.
Explosion-Proof Motor – Designed for outdoor drilling environments where explosion-proof protection is required.

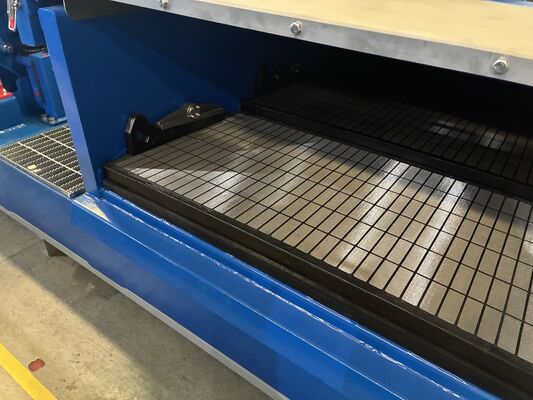

Adjustable Deck & Frame Screen – Simplifies screen replacement and allows adjustment of the deck angle according to operating requirements.
Quick-Locking Screen Design – Patented screen pressing technology helps speed up screen installation and replacement.
Anti-Loosening Thread System – Helps maintain secure connections under continuous vibration.
Full Anti-Splash Structure – Reduces drilling mud splashing during high-load operation.
Heavy-Duty Anti-Corrosion Coating – Provides additional protection against harsh outdoor conditions and helps extend service life.
Integrated Configuration Options – Available with double or triple integral bases and an integrated mud box to suit different solids control system layouts.
With its explosion-proof configuration, robust vibration system, and practical maintenance design, the ZS-S-5K shale shaker is suitable for drilling mud screening, solids removal, and oilfield solids control systems.
| Attribute | Value |
|---|---|
| Model | ZS-S-5K |
| Vibration Track | Translational Elliptical / Variable Elliptical |
| Motor Power | 2 * 2.2 kW |
| Screen Size | 1165 * 585 * 40 mm |
| Screen Number | 5 |
| Total Screen Area | 3.40 ㎡ |
| Vibration Amplitude | > 5.2 mm |
| Vibration Intensity | > 6.5 g |
| Tilt Adjustment Range | -1° ~ +4° |
| Power Supply | AC 380V / 50HZ |
| Explosion-proof Grade | E* d II B T4 Gb |
| Weight | 2200 kg |
| Dimensions (L * W * H) | 2997 * 1728 * 1650 mm |
