ZS PT Shale Shakers 380V Solid Control Equipment Dual Motion Tracks Hyperpool Shaker

ZS PT Shale Shakers 380V Solid Control Equipment Dual Motion Tracks Hyperpool Shaker

Brand Name: XBSY
Model Number: ZS
MOQ: 1
Price: Price Negotiable
Payment Terms: TT
Supply Ability: 1000
Detail Information
Product Description
Detail Information
Place of Origin:
Sichuan，China
Certification:
USE 18000,USE14000，EAC，CE，ISO9000
Document:
XBSY Equipment.pdf
Vibration Track:
Linear / Translational Elliptical
Motor Power:
2 * 1.94 KW + 0.75 KW
Screen Size:
1165 * 585 * 40 Mm
Screen Number:
4
Total Screen Area:
2.72 ㎡
Vibration Amplitude:
> 5.2 Mm
Vibration Intensity:
> 6.5 G
Tilt Adjustment Range:
-1° ~ +4°
Power Supply:
AC 380V / 50HZ
Explosion-proof Grade:
E* D II B T4 Gb
Weight:
2100 Kg
Dimensions (L * W * H):
2982 * 1728 * 1516 Mm
Packaging Details:
Ply Wood Box,iron box
Highlight:

ZS PT Shale Shaker

,

380V Solid Control Equipment

,

Dual Motion Tracks hyperpool shaker

Product Description
ZS-Z/PT Shale Shakers High-Efficiency Solids Control with Dual Motion Tracks
Product Overview
Engineered for rigorous oilfield operations, ZS Series Shale Shakers feature dual-motion tracks (linear/elliptical) adaptable to diverse drilling conditions. With industrial-grade 2.2kW explosion-proof motors (Ex d II B T4 certified) and vibration intensity exceeding 6.5g, they ensure efficient solids separation. The patented fast-pressing screen system enables tool-free replacement in minutes, while adjustable deck angles (-1° to +4°) optimize mud flow. Heavy-duty anti-corrosion coating extends lifespan in harsh environments.
Ideal for: High-volume drilling rigs requiring minimal downtime.

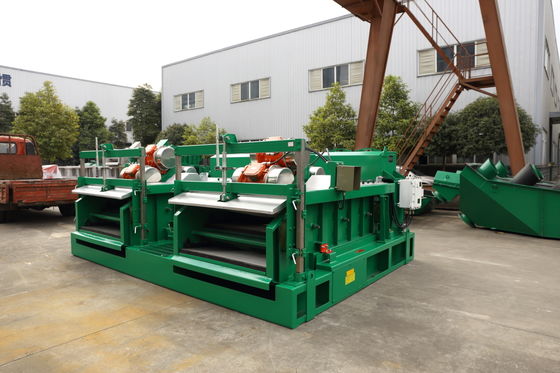

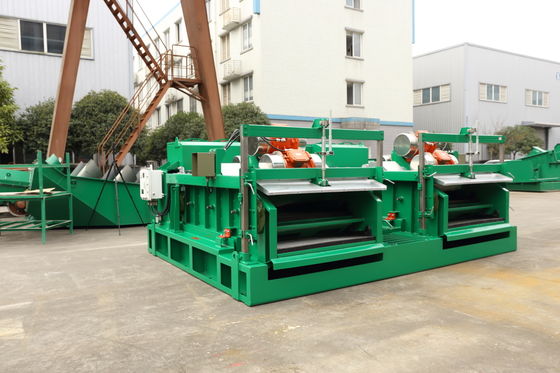

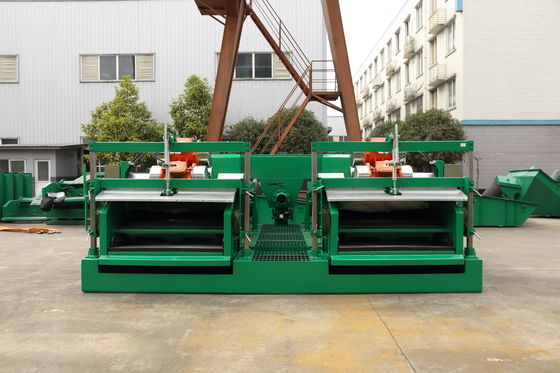

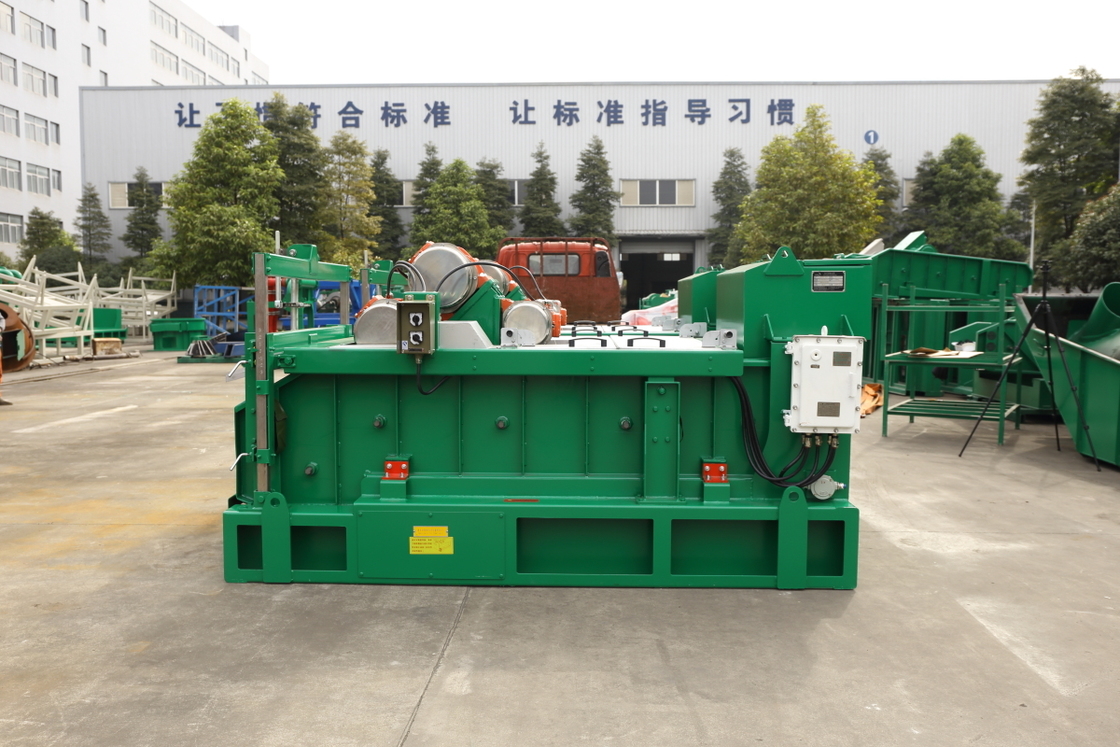

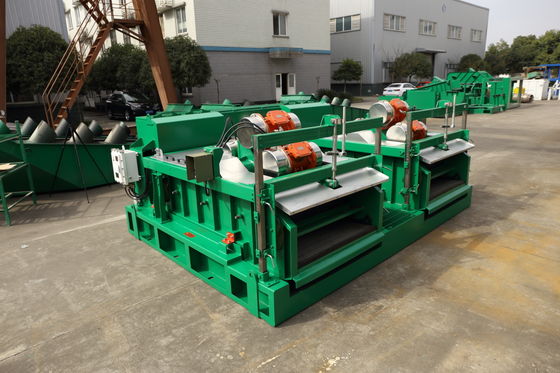

ZS PT Shale Shakers 380V Solid Control Equipment Dual Motion Tracks Hyperpool Shaker 0
Key Features
  • Two motion tracks - Adaptable to different working condition requirements
  • High-quality motor - Designed for harsh outdoor explosion-proof environments
  • Frame screen & adjustable deck angle - Easy screen replacement with maintenance-free operation
  • Patented fast pressing screen - Simplifies screen replacement process
  • Anti-loosening thread technology - Ensures reliable connections in vibrating conditions
  • All-round anti-splash design - Significantly reduces mud splash during operation
  • Heavy-duty anti-corrosion coating - Extends equipment lifespan
  • Integrated design options - Available with double or triple integral base and integral mud box
Technical Specifications
Model ZS-Z / PT
Vibration Track Linear / Translational Elliptical
Motor Power 2 * 1.94 kW + 0.75 kW
Screen Size 1165 * 585 * 40 mm
Screen Number 4
Total Screen Area 2.72 ㎡
Vibration Amplitude > 5.2 mm
Vibration Intensity > 6.5 g
Tilt Adjustment Range -1° ~ +4°
Power Supply AC 380V / 50HZ
Explosion-proof Grade E* d II B T4 Gb
Weight 2100 kg
Dimensions (L * W * H) 2982 * 1728 * 1516 mm
