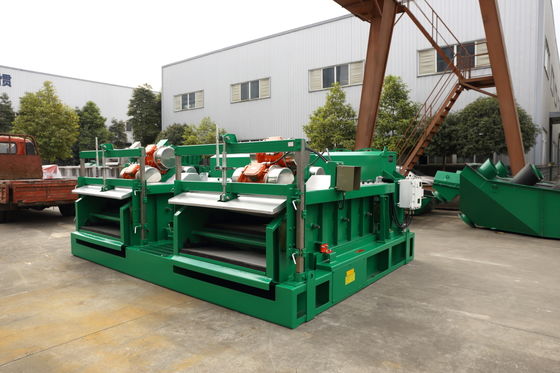

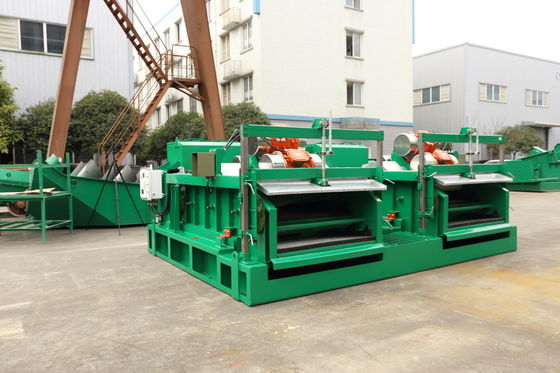

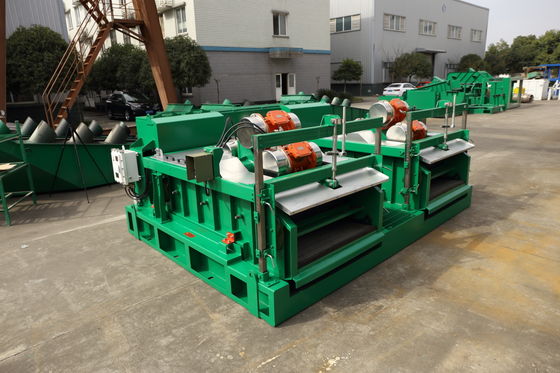

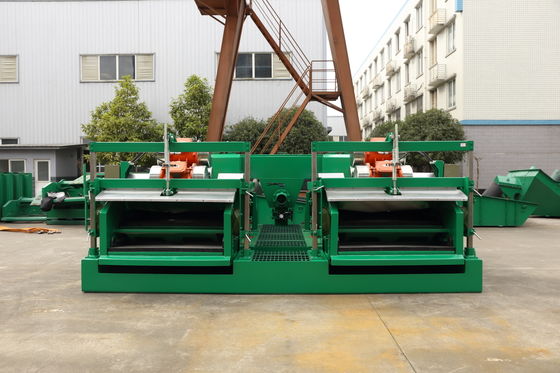

Linear Elliptical Shale Shakers ZS S 3.4M2 Screen Anti Corrosion Drilling Shale Shaker

Name: Linear Elliptical Shale Shakers ZS S 3.4M2 Screen Anti Corrosion Drilling Shale Shaker
Brand: Chengdu West Petroleum Equipment Co., Ltd.
SKU: ZS
Availability: InStock

Brand Name:	XBSY
Model Number:	ZS
MOQ:	1
Price:	Price Negotiable
Payment Terms:	TT
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan，China

Certification:

USE 18000,USE14000，EAC，CE，ISO9000

Document:

XBSY Equipment.pdf

Vibration Track:

Translational Elliptical / Variable Elliptical

Motor Power:

2 * 1.94 KW

Screen Size:

1165 * 585 * 40 Mm

Screen Number:

Total Screen Area:

2.72 ㎡

Vibration Amplitude:

> 5.2 Mm

Vibration Intensity:

> 6.5 G

Tilt Adjustment Range:

-1° ~ +4°

Power Supply:

AC 380V / 50HZ

Explosion-proof Grade:

E* D II B T4 Gb

Weight:

2050 Kg

Dimensions (L * W * H):

2982 * 1728 * 1516 Mm

Packaging Details:

Ply Wood Box,iron box

Highlight:

Linear Shale Shaker

Elliptical Shale Shaker ZS S

3.4M2 drilling shale shaker

Product Description

Linear/Elliptical ZS-S Shale Shakers - 3.4㎡ Screen Area, Anti-Corrosion Coating

Built for longevity, ZS Series shakers use anti-loosening thread technology to withstand extreme vibrations. IP55-rated components (comparable to industrial pumps) and stainless-steel hardware resist corrosion. Explosion-proof certification (Ex d II B T4) ensures safety in hazardous zones. The 2200kg reinforced steel frame supports continuous operation.

Tailor performance to drilling needs: Choose between translational elliptical (ZS-Z/PT) or variable elliptical (ZS-S) vibration tracks. Models support 4-5 screens (1165×585×40mm) and integrate with double/triple bases or mud tanks. Adjustable tilt and amplitude settings handle fluids from water to high-viscosity mud.

Key Features

Two motion tracks - Adaptable to different working condition requirements
High-quality motor - Designed for harsh outdoor explosion-proof environments
Frame screen & adjustable deck angle - Easy screen replacement with maintenance-free operation
Patented fast pressing screen - Simplifies screen replacement process
Anti-loosening thread technology - Ensures reliable connections in vibrating conditions
All-round anti-splash design - Significantly reduces mud splash during operation
Heavy-duty anti-corrosion coating - Extends equipment lifespan
Integrated design options - Available with double or triple integral base and integral mud box

Technical Specifications

Attribute	Value
Model	ZS-S
Vibration Track	Translational Elliptical / Variable Elliptical
Motor Power	2 * 1.94 kW
Screen Size	1165 * 585 * 40 mm
Screen Number	4
Total Screen Area	2.72 ㎡
Vibration Amplitude	> 5.2 mm
Vibration Intensity	> 6.5 g
Tilt Adjustment Range	-1° ~ +4°
Power Supply	AC 380V / 50HZ
Explosion-proof Grade	E* d II B T4 Gb
Weight	2050 kg
Dimensions (L * W * H)	2982 * 1728 * 1516 mm
