Mud Cleaner with Integrated Desander and Desilter for Oilfield Drilling

XBSY QJ Mud Cleaner: Integrated Desander & Desilter with Shale Shaker

Mud Cleaner

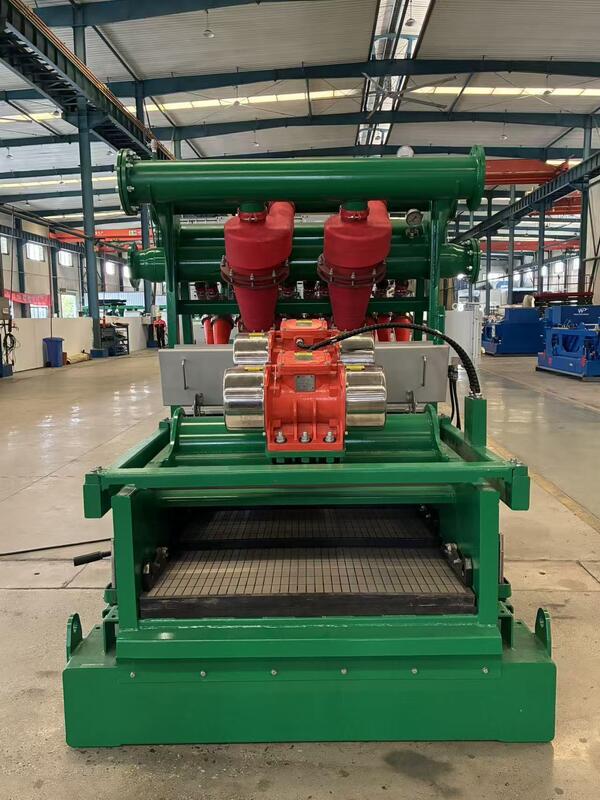

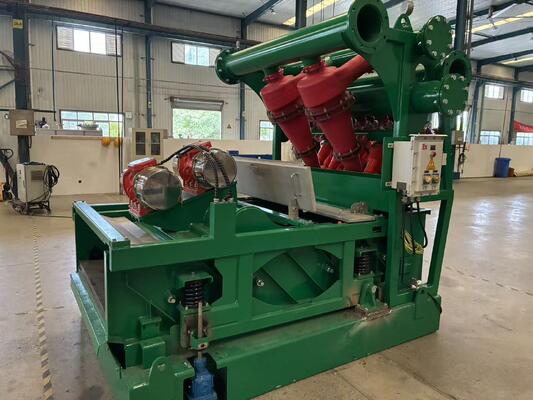

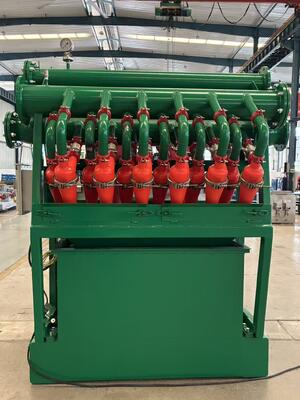

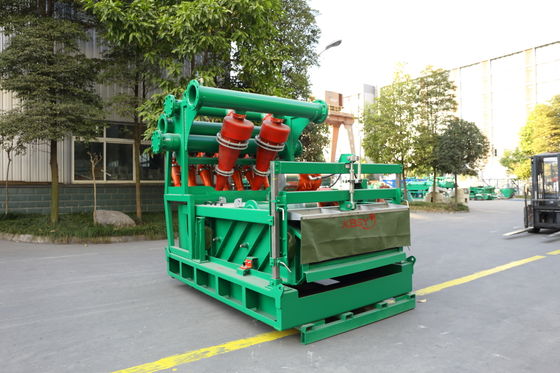

The XBSY QJ Series Mud Cleaner is an integrated solids control unit that combines 300 mm desander cyclones (2 units), 125 mm desilter cyclones (12 units), and a linear-motion shale shaker to provide efficient multi-stage removal of unwanted solids from drilling fluid.

During operation, drilling fluid first enters the hydrocyclones for primary separation. The separated overflow is returned to the active mud system, while the cyclone underflow is discharged onto the shaker for further screening and solids removal. This combined design provides effective particle separation while maintaining a compact footprint of approximately 2960 × 2100 × 2400 mm, making it well suited for space-limited drilling sites.

Key Features

• Heavy-Duty Motor Design
  Equipped with a high-quality motor designed for reliable performance in demanding outdoor drilling environments, with explosion-proof configurations available according to project requirements.
• Durable Screen Frame & Adjustable Deck Angle
  The robust screen structure allows convenient screen replacement and deck-angle adjustment, helping operators achieve optimal screening performance with minimal maintenance.
• Compact Structure & Easy Operation
  The integrated arrangement saves installation space while providing straightforward operation and convenient access to key components.
• Quick-Locking Screen Tensioning System
  The patented fast screen-pressing mechanism enables rapid screen installation and replacement, reducing maintenance downtime.
• Anti-Loosening Thread Technology
  Special fastening technology helps prevent connection loosening caused by continuous vibration, improving equipment reliability and service life.
• 360° Anti-Splash Protection
  The optimized splash-control design effectively limits drilling mud splashing during operation, helping maintain a cleaner and safer working environment.
• Heavy-Duty Anti-Corrosion Coating
  A durable protective coating provides enhanced resistance to corrosion and harsh outdoor conditions, supporting long-term equipment operation in demanding drilling environments.
