| Brand Name: | XBSY |
| Model Number: | SB6 × 8J-12½ |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

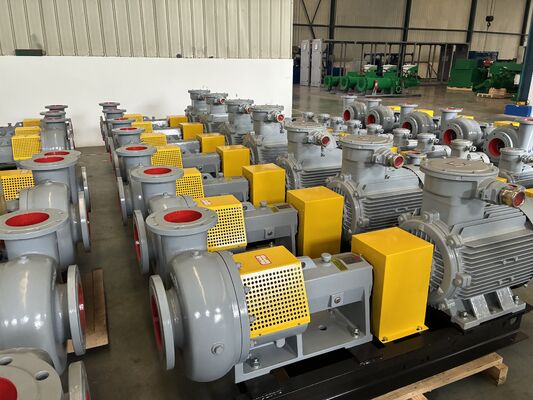

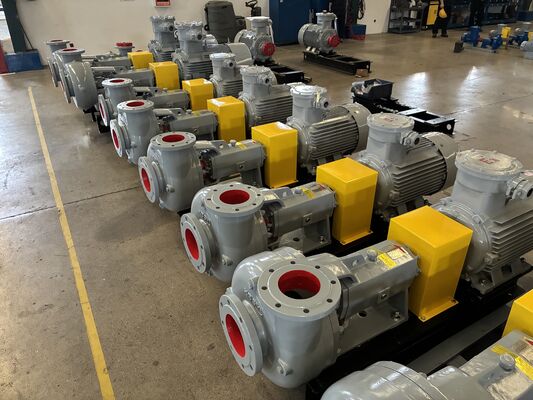

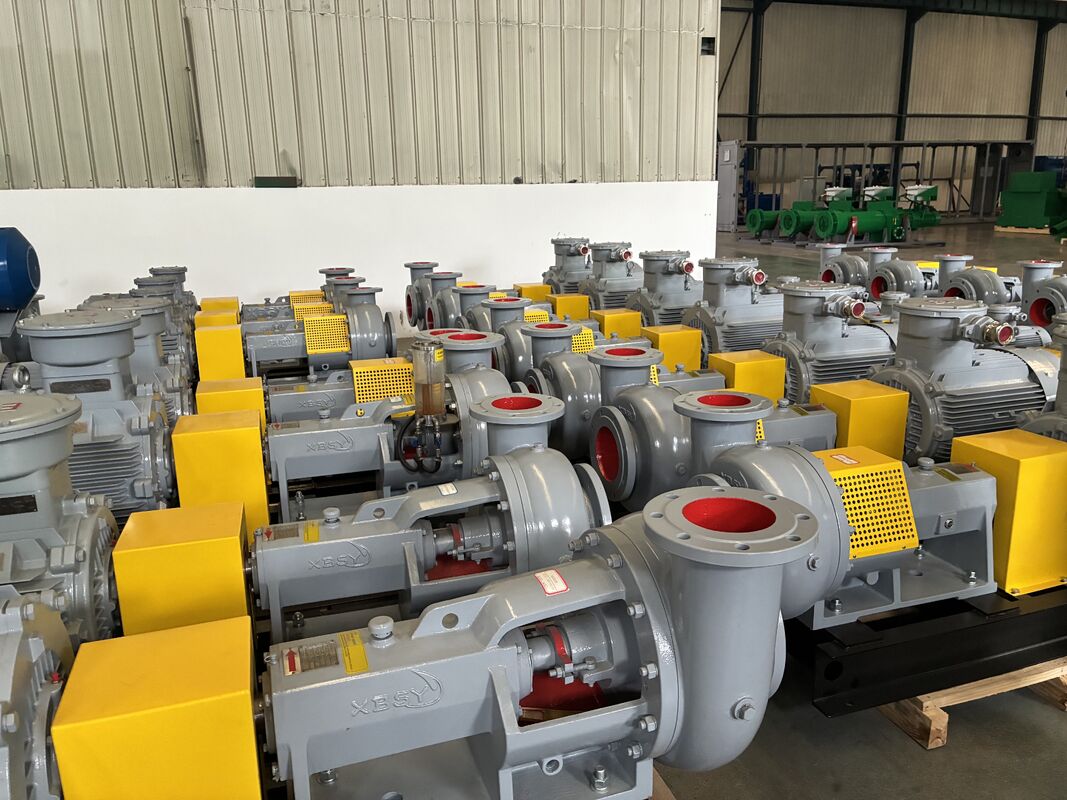

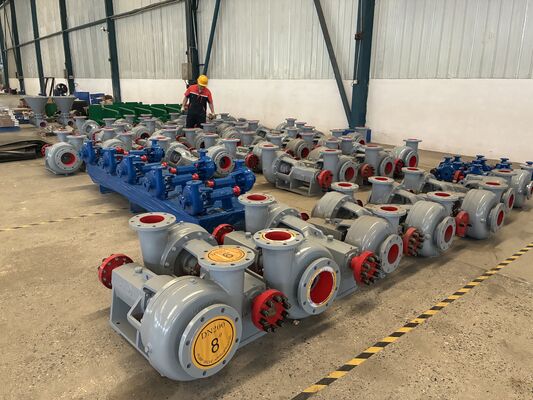

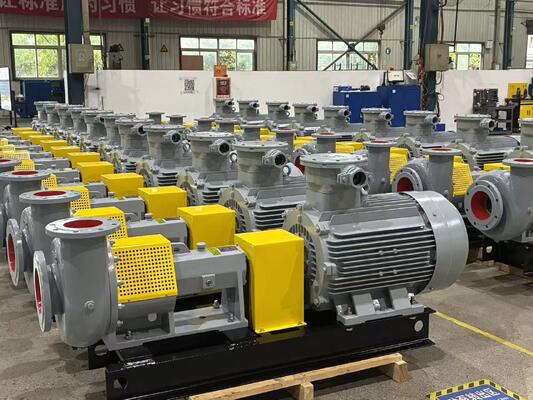

XBSY Sand Pump for Oilfield Drilling Mud and Solids Control Systems
The XBSY Sand Pump is a heavy-duty centrifugal pump designed for drilling mud transfer and circulation in oilfield solids control systems. It provides a reliable and continuous supply of drilling fluid to downstream equipment such as desanders, desilters, mud cleaners, and mud mixing systems.
Designed to handle drilling fluids containing abrasive sand and solid particles, the pump features a durable mechanical seal assembly with tungsten carbide sealing faces and carbon fiber auxiliary sealing elements. This design helps improve wear resistance and reduce leakage during continuous operation.
The pump hydraulic system is optimized through CFD hydraulic analysis to improve flow performance and minimize internal pressure losses. The impeller and volute casing are made of wear-resistant high-chromium cast iron, providing enhanced protection against erosion caused by abrasive solids in drilling mud.
Depending on the installation layout and operating requirements, the XBSY Sand Pump is available with direct-drive or belt-drive transmission. Its compact structure also facilitates installation, inspection, and routine maintenance at the drilling site.
The pump is suitable for various drilling mud applications, including desander and desilter feeding, mud circulation, mud mixing, and drilling fluid transfer. With its wear-resistant construction and reliable operating design, the XBSY Sand Pump is well suited for demanding oilfield solids control operations.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
gh Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of ghly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB6 × 8J-12½ | 200 | 36 | 1480 | 1780 | 66 | 29.7 | 55 | 1000 | 1996×698×972 |
