545kg Lightweight Units Electric Centrifugal Pump 1686mm Centrifugal Vacuum Pump

545kg Lightweight Units Electric Centrifugal Pump 1686mm Centrifugal Vacuum Pump

Brand Name: XBSY
MOQ: 1
Price: Price Negotiable
Payment Terms: TT
Supply Ability: 1000
Detail Information
Place of Origin:
Sichuan,China
Certification:
USE 18000,USE14000,EAC,CE,ISO9000
Document:
Model:
SB5 × 6J - 11
Flow (m³/h):
140
Head (m):
22
Rotational Speed(rpm):
1470-1780
Efficiency (%):
62
Power (kW):
13.5-22
Weight (kg):
545
L*W*H (mm):
1686×516×764
Packaging Details:
Ply Wood Box,iron box
Highlight:

545kg electric centrifugal pump

,

Lightweight electric centrifugal pump

,

1686mm centrifugal vacuum pump

Product Description

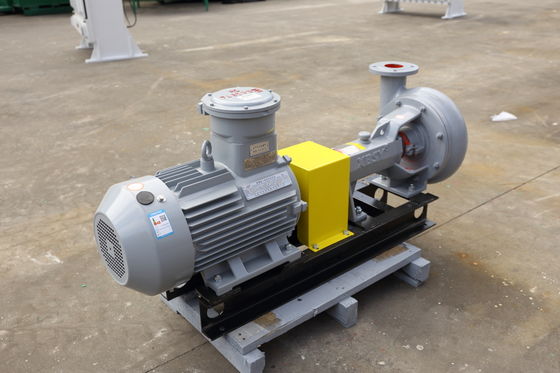

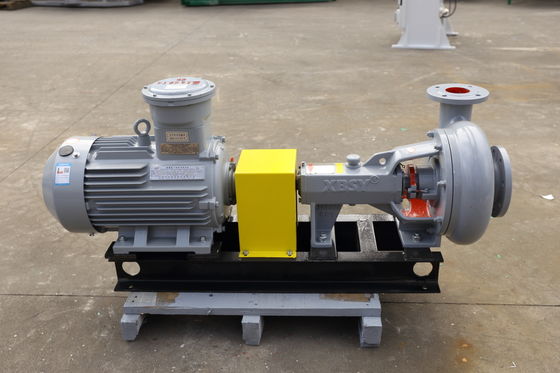

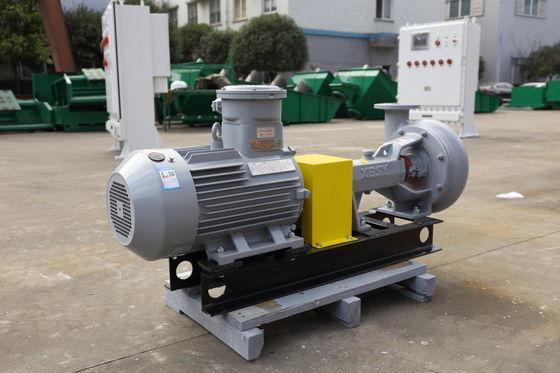

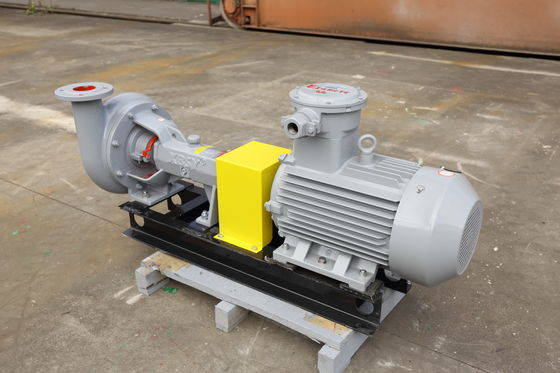

​​XBSY SB Series: 545kg Lightweight Units (1686×516×764mm) for Mobile Rigs​​

Weighing only ​​545kg (SB5×6J-11)​​, these pumps deploy rapidly in offshore platforms and modular solids control systems. Standardized mounting interfaces ensure compatibility with shakers, degassers, and centrifuges. The ​​1.7m length​​ fits standard skid bases, reducing retrofitting costs by 30%.Manufactured under ISO 9001 and API 13C standards. Optional ​​ATEX-certified motors​​ for Zone 1 hazardous areas, ​​epoxy coatings​​ for saltwater corrosion resistance, and ​​stainless steel components​​ for H₂S environments. All units include ​​12-month warranty​​ and lifetime technical support.

545kg Lightweight Units Electric Centrifugal Pump 1686mm Centrifugal Vacuum Pump 0

Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).





Model Flow (m³/h) Head (m) Rotational Speed(rpm) Efficiency (%) Power (kW) Weight (kg) L*W*H (mm)
/ / / 50Hz 60Hz / Shaft Power Motor Power / /
SB5 × 6J - 11 140 22 1470 1780 62 13.5 22 545 1686×516×764
