| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

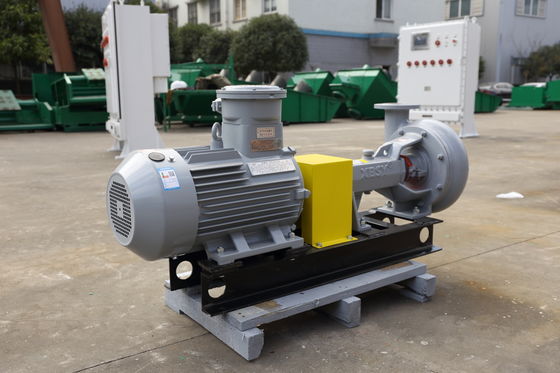

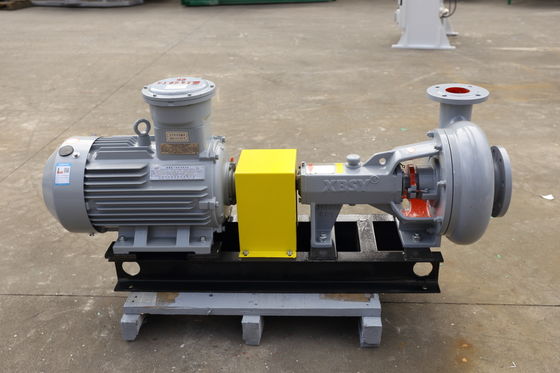

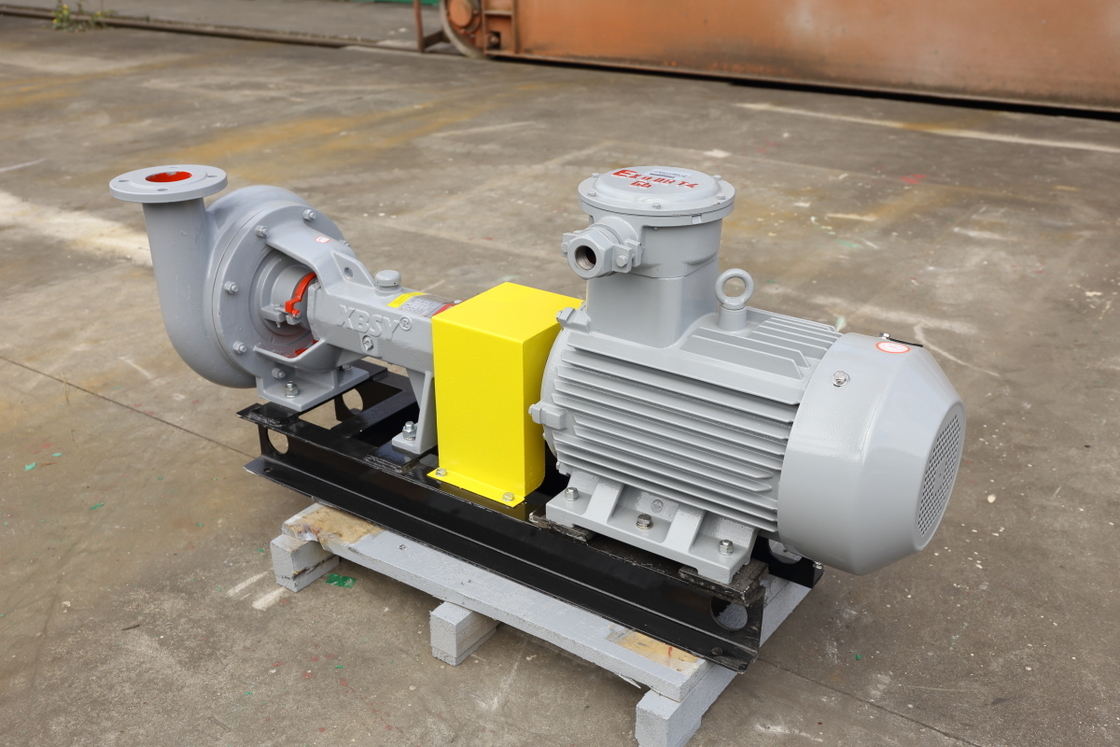

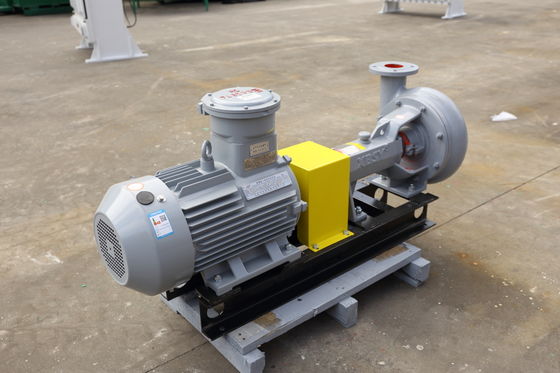

All SB pumps operate at dual speeds: 1470 RPM for 50Hz grids and 1780 RPM for 60Hz grids without mechanical modifications. Forward/reverse rotation capability optimizes piping layouts in congested mud pits. Compatible with metric and imperial flange standards, ensuring interchangeability with major OEM systems like NOV Mission pumps. Voltage tolerance ±10% stabilizes performance in variable power conditions.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB4 × 5J - 10 | 150 | 25 | 1470 | 1780 | 61 | 16.8 | 22 | 480 | 1600×510×705 |
| SB4 × 5J - 9 | 93 | 20 | 1460 | 1760 | 58 | 8.8 | 15 | 400 | 1533×510×725 |
