XBSY Sand Pump for Oilfield Drilling Mud and Solids Control Systems

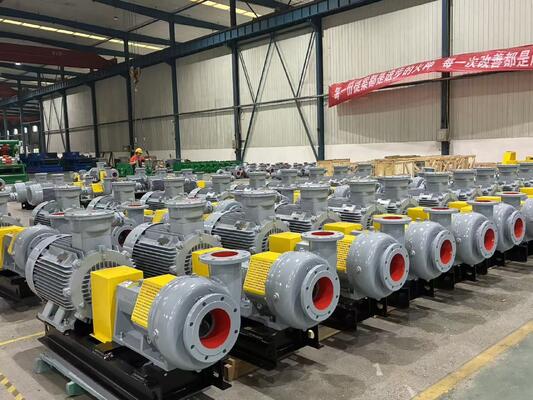

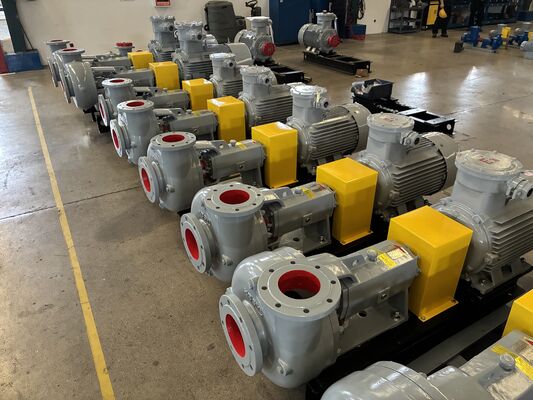

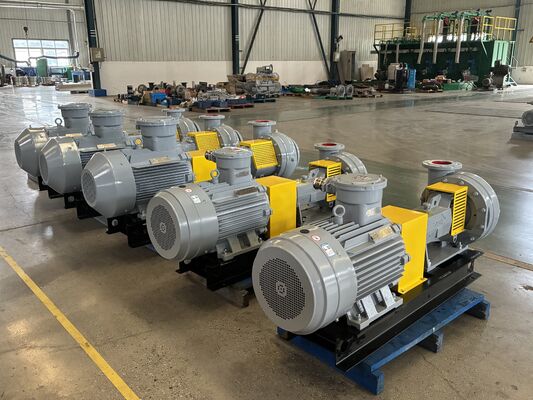

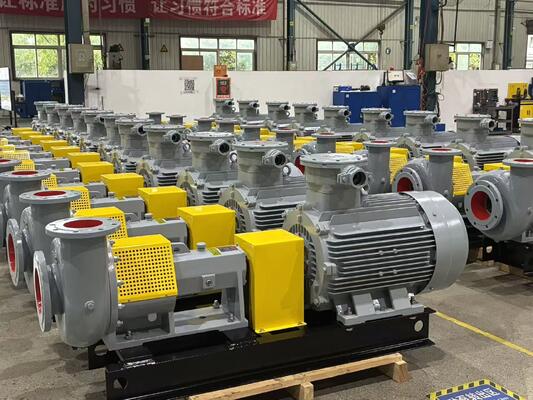

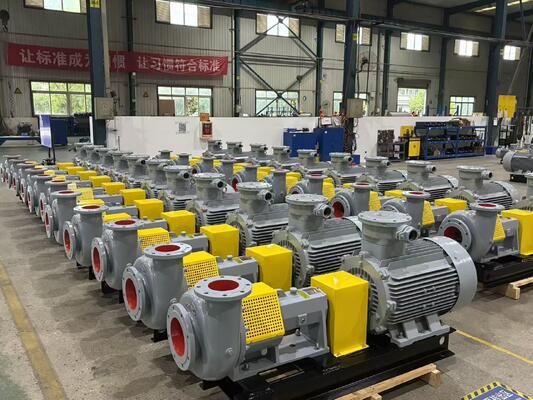

The XBSY Sand Pump is a heavy-duty centrifugal pump developed for continuous drilling fluid circulation and solids control applications in oil and gas drilling operations. It is designed to provide a stable supply of drilling mud to downstream equipment such as desanders, desilters, mud cleaners, and mixing systems.

Built for handling drilling fluids containing abrasive sand and solid particles, the pump incorporates a reliable mechanical seal assembly with tungsten carbide sealing faces and carbon fiber auxiliary sealing elements. This configuration provides good wear resistance and helps minimize leakage and seal damage during continuous operation.

The pump's hydraulic components are optimized using CFD hydraulic analysis to improve flow efficiency and reduce internal pressure losses. The impeller and volute casing are manufactured from wear-resistant high-chromium cast iron, providing enhanced resistance to erosion caused by abrasive drilling solids and helping extend component service life.

For flexible field installation, the XBSY Sand Pump can be configured with either direct-drive or belt-drive transmission according to the customer's system layout and operating requirements. Its compact construction also makes installation, inspection, and routine maintenance convenient.

The pump is widely applicable to oilfield solids control systems, including desander and desilter feeding, drilling mud circulation, mud mixing, and other drilling fluid transfer applications. With its robust construction and abrasion-resistant components, the XBSY Sand Pump provides a dependable solution for demanding drilling environments.

Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
gh Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of ghly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
