| Brand Name: | XBSY |
| Model Number: | SB6 × 8J-12½ |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

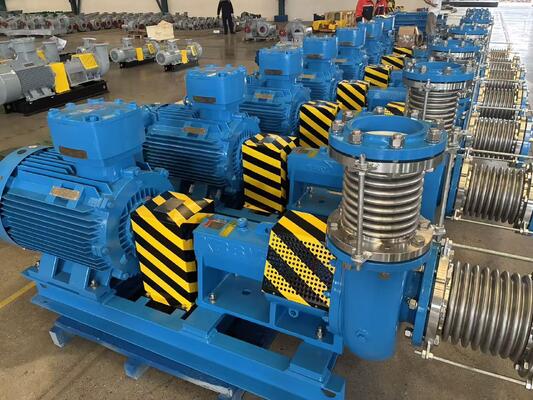

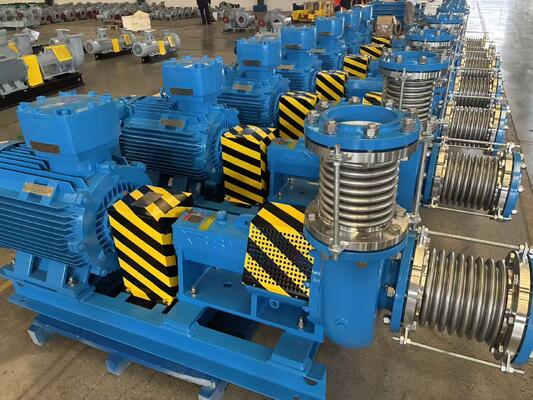

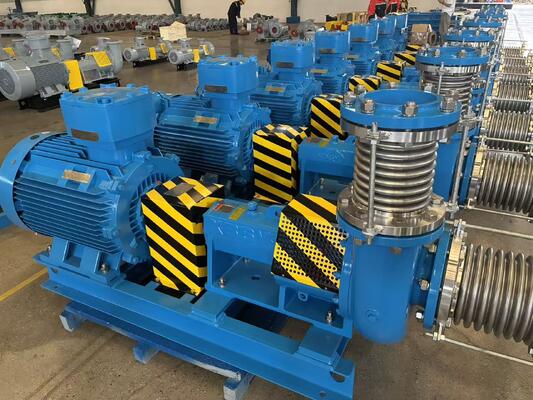

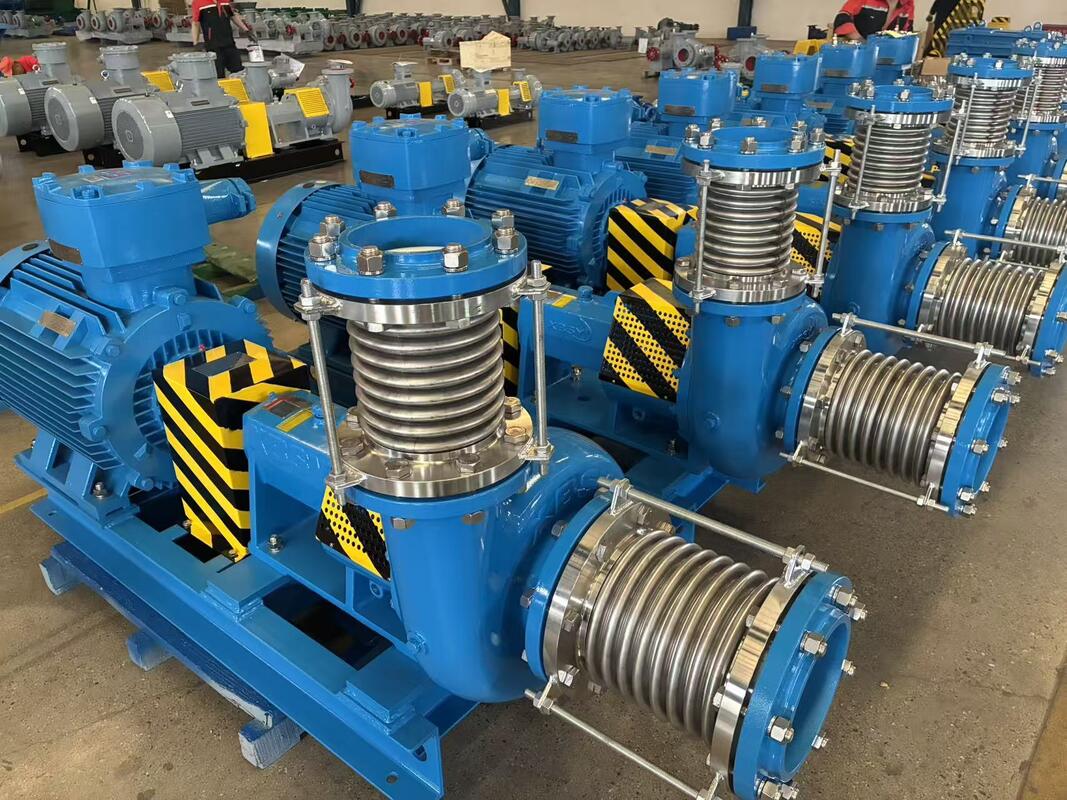

XBSY Sand Pump is a high-efficiency centrifugal pump specially designed for oilfield solids control systems, providing stable drilling fluid transfer for desanders, desilters, and mud mixing systems. With excellent hydraulic performance and strong abrasion resistance, it ensures reliable operation under harsh drilling conditions.
The pump adopts a wear-resistant mechanical seal design with tungsten carbide sealing faces and carbon fiber auxiliary seals, effectively resisting wear caused by drilling fluids containing solid particles. Compared with conventional sealing systems, it provides longer service life, reduces leakage risks, and minimizes maintenance requirements during continuous operation.
The optimized impeller and volute casing design based on CFD technology reduces hydraulic losses and improves pumping efficiency. High-chromium cast iron wear-resistant components provide excellent resistance against sand and solid particle abrasion, extending service intervals and reducing operating costs.
With a compact structure and flexible direct/belt drive options, the Sand Pump is easy to install and maintain, making it an ideal solution for oil & gas drilling, desander/desilter feeding, and other solids control applications.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
gh Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of ghly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB6 × 8J-12½ | 200 | 36 | 1480 | 1780 | 66 | 29.7 | 55 | 1000 | 1996×698×972 |
