| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

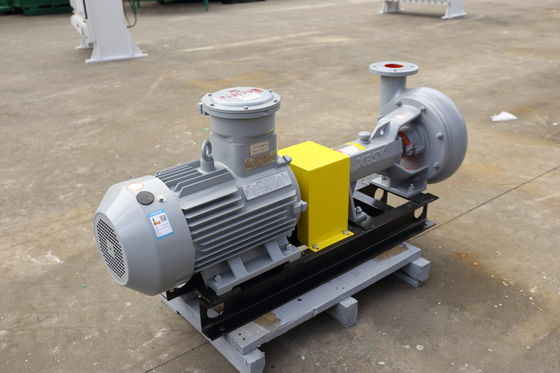

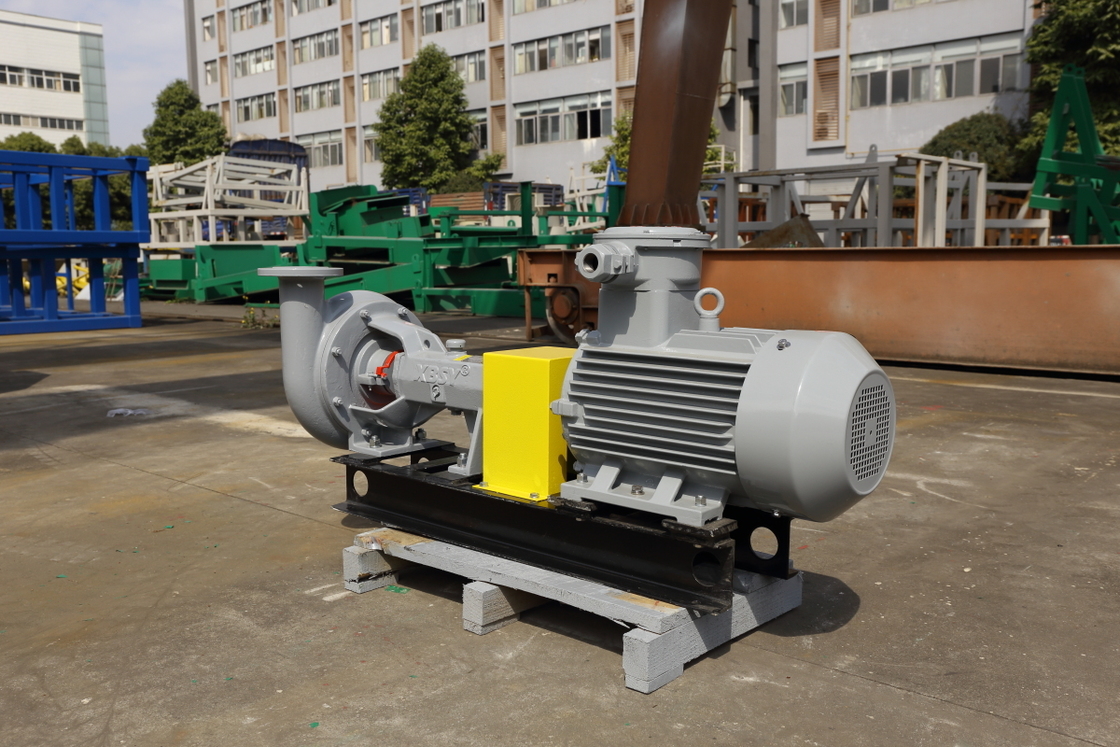

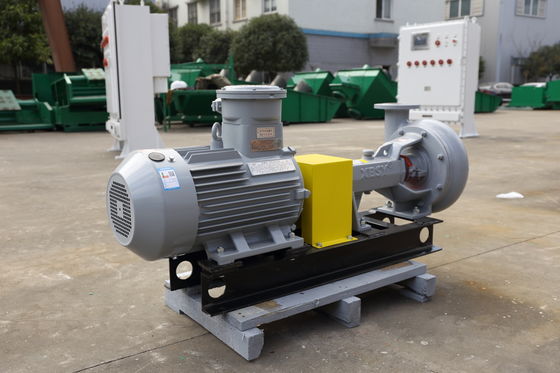

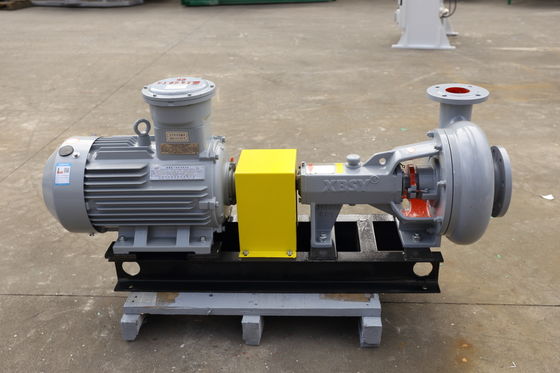

XBSY’s centrifugal pumps (SB6×8, SB5×6, SB4×5, SB3×4, SB2×3) utilize high-wear-resistant cast iron in overflow components, extending service life by 50% in high-solids environments. The wide-flow-path impeller prevents clogging with 20mm solid passage capability, while optimized volute geometry achieves 64% hydraulic efficiency. Patented compact structure (Patent ZL200730094452.1) reduces footprint by 25% versus conventional pumps.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB6 × 8J - 12 | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 850 | 1916×638×917 |
