| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

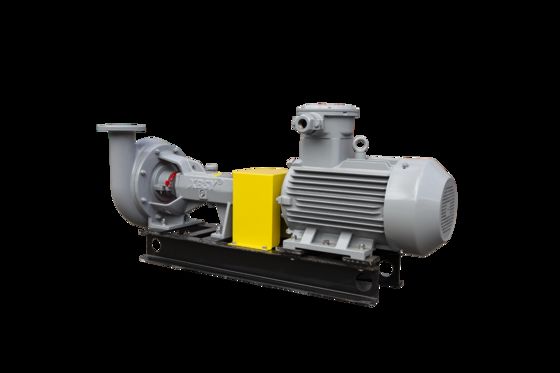

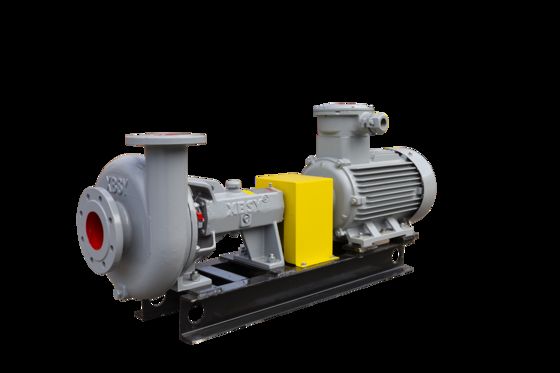

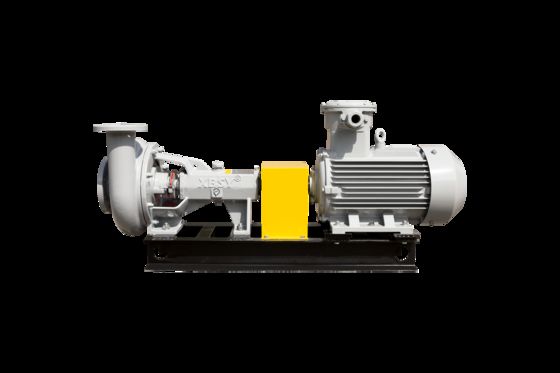

SB pumps support 50Hz/60Hz power grids and metric/imperial standards, enabling deployment in North American, Middle Eastern, and Asian drilling sites. The SB6×8J-13 offers dual drive options (direct coupling or belt drive) and forward/reverse rotation modes, accommodating confined rig spaces. With NPSH as low as 2.5m, it maintains stable suction under varying mud viscosities. Optimized impeller and volute streamlining minimize turbulence, achieving 67% hydraulic efficiency—10% higher than industry averages. The SB6×8J-13 reduces energy consumption by 18% compared to conventional pumps, translating to lower OPEX. At 240m³/h flow, it efficiently supplies desanders, desilters, and mud mixing systems while handling abrasive slurries.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB6 × 8J - 13 | 240 | 37 | 1480 | 1780 | 67 | 36 | 75 | 1130 | 2056×698×1022 |
