| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

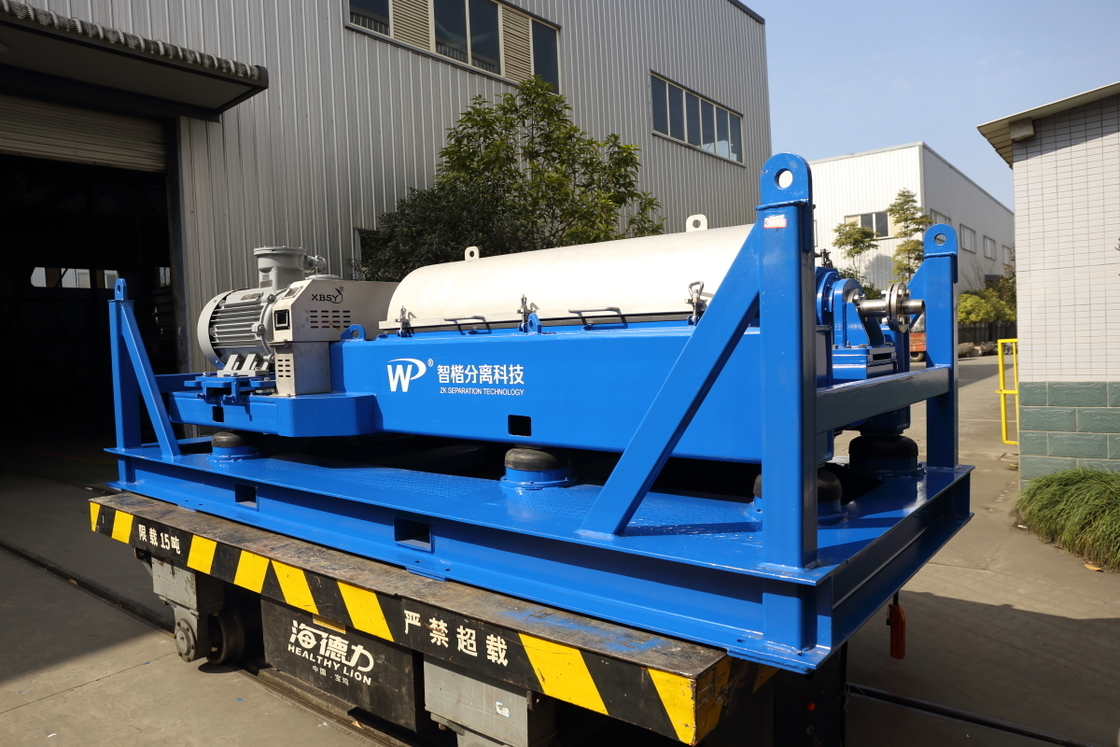

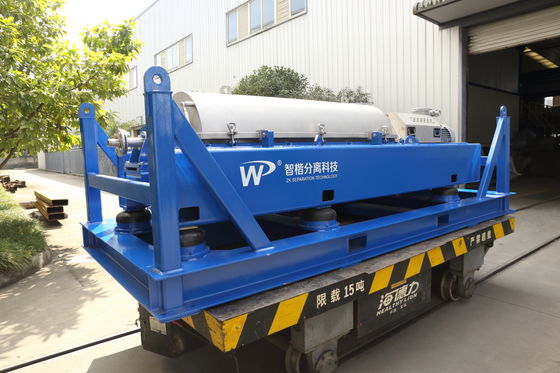

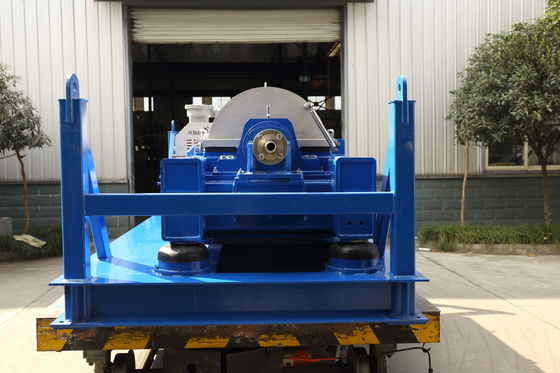

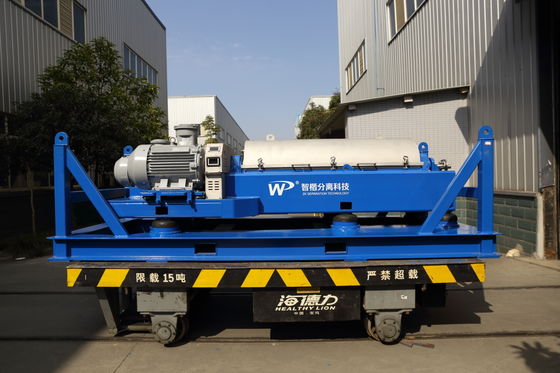

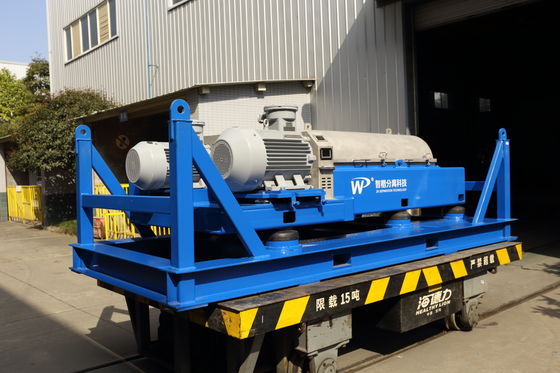

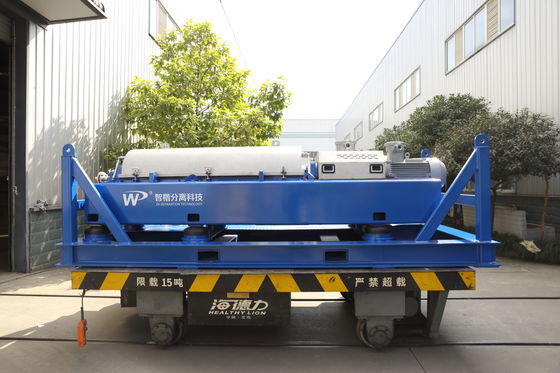

XBSY VFD intelligent frequency conversion high-speed centrifuge is controlled by PLC programming, drum speed can be steplessly adjusted within the design range, and the color explosion-proof touch screen is designed on the control cabinet, which can display drum speed, working current, torque, main bearing temperature, whole machine vibration, differential speed and other parameters and alarm information. This equipment is suitable for customers who have a demand for intelligent and efficient centrifuges, such as upgrading the original solids control equipment, configuring intelligent drilling rigs for the original solids control equipment, etc.
Features
PLC Programming Control - Drum speed can be steplessly adjusted within the design range.
Equipped with color explosion-proof touch screen, real-time view of speed, current, torque, bearing temperature, whole machine vibration, differential speed, etc.
Intelligent control, easy operation, large processing capacity, good effect and low failure rate.
| Model | LW450 × 1670B |
| Drive Type | VFD Intelligent Variable Frequency |
| Drum Inner Diameter (mm) | 450 |
| Drum Working Length(mm) | 1670 |
| Maximum Drum Speed (r/min) | 3400 |
| Drum Working Speed (r/min) | ≤ 3200 |
| Fr | ≤ 2580 |
| Pusher Differential Speed (r/min) | ≤50 |
| Max. Capacity (m³/h) | 60 |
| Rated Power (kW) (Main Motor) | 45kW |
| Rated Speed (r/min) (Auxiliary Motor) | 1470 r / min |
| Feeding Pump Model | Screw Pumps or Centrifugal Pumps |
| L * W * H (mm) | 3945 × 1735 × 1270 |
| Weight(Kg) | 5400 |
