| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

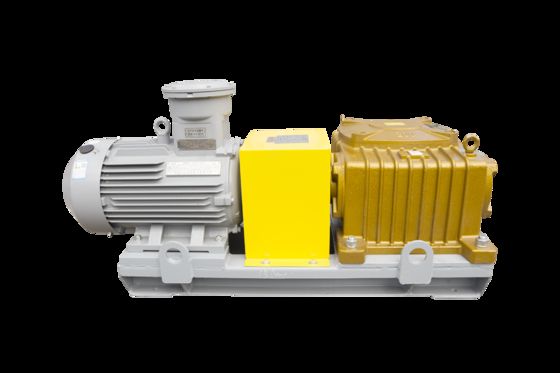

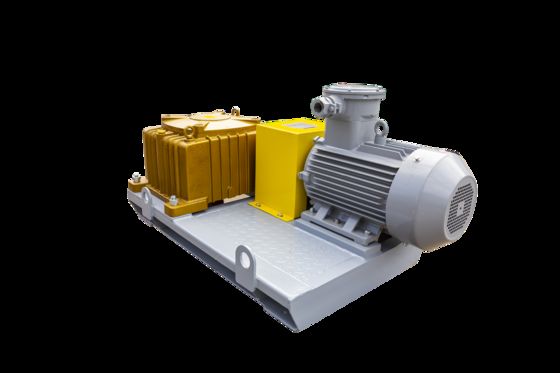

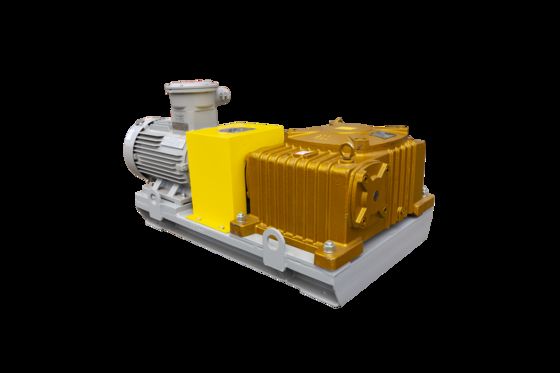

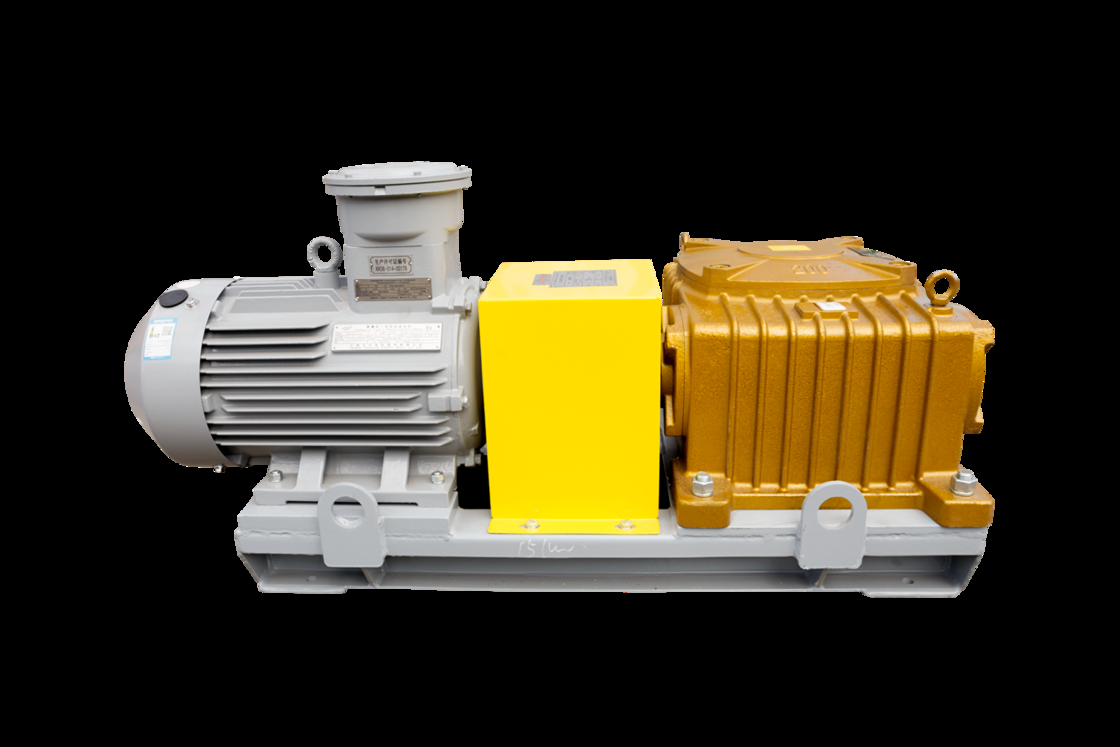

The XBSY JB/W7.5 mud agitator employs a tilted-blade impeller design to generate axial and radial flow patterns, ensuring uniform suspension of solid particles (e.g., barite, cuttings) and preventing sedimentation in drilling fluid tanks. With a 7.5kW motor driving the impeller at 58/72 RPM (50/60Hz), it delivers 15,710 L/min flow capacity, suitable for high-density mud systems. The worm gear reducer minimizes mechanical wear, reducing maintenance frequency by 40% compared to standard gearboxes. Its compact footprint (1101×664×623 mm) allows flexible integration into land-based and offshore rig tanks, while the corrosion-resistant construction extends service life in harsh environments.
Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.
| Model | Motor Power | Motor Speed | Impeller Speed (rpm) | Impeller Discharge | Impeller Diameter (mm) | Weight (kg) | L × W × H (mm) | ||
| / | / | / | 50HZ | 60HZ | / | Single Impeller | Double Impeller | / | / |
| JB / W7.5 | 7.5 | 1440 / 1750 | 58 or 72 | 70 | 15710 | 860 | U780/L520 | 400 | 1101×664×623 |
