| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

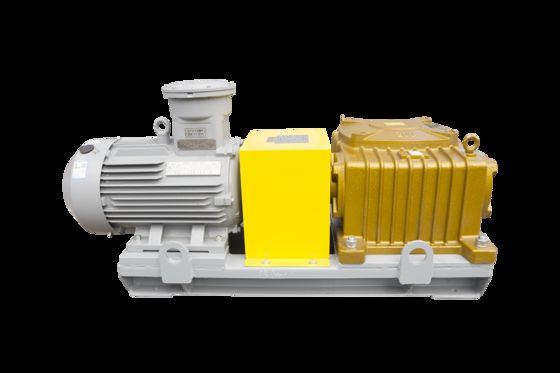

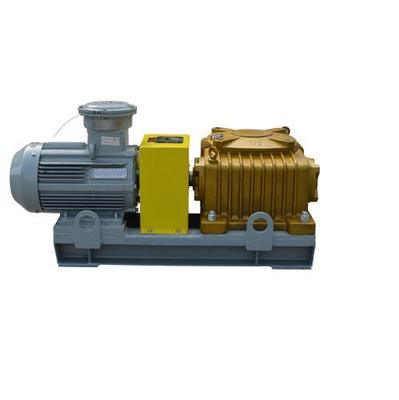

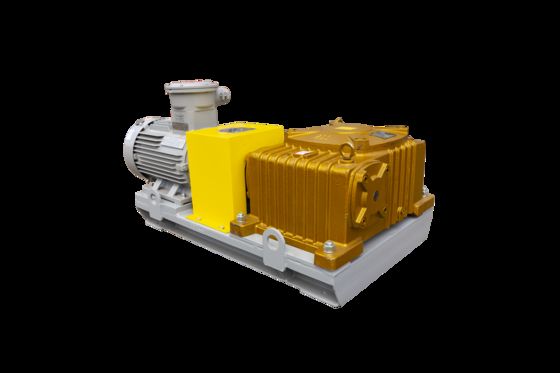

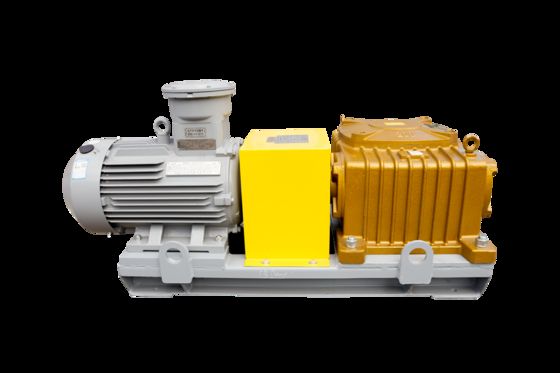

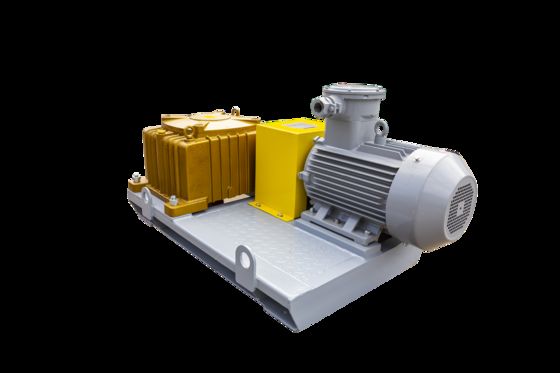

Engineered with inclined blades, XBSY JB/W series agitators enhance drilling fluid homogeneity across land-based tanks and marine platforms. The JB/W5.5 variant features a 5.5kW motor, 800mm impeller diameter, and discharge capacity of 11,870 units. Compatible with global power standards (50/60Hz), its turbine reducer minimizes energy loss while maintaining 70 RPM impeller speed. Compact dimensions (954×549×583mm) enable flexible installation in confined spaces.
Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.
| Model | Motor Power | Motor Speed | Impeller Speed (rpm) | Impeller Discharge | Impeller Diameter (mm) | Weight (kg) | L × W × H (mm) | ||
| / | / | / | 50HZ | 60HZ | / | Single Impeller | Double Impeller | / | / |
| JB / W5.5 | 5.5 | 1440 / 1750 | 58 or 72 | 70 | 11870 | 800 | U720/L480 | 295 | 954×549×583 |
