| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

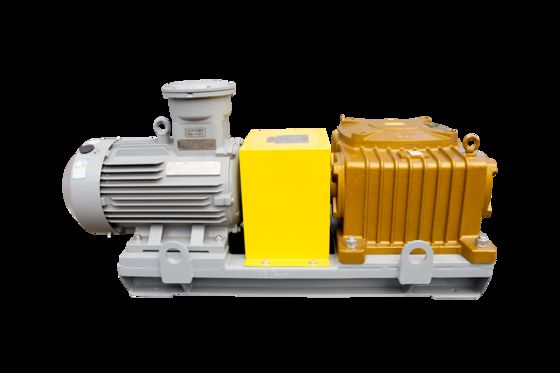

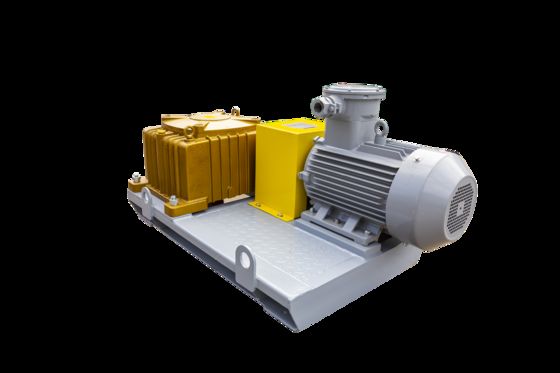

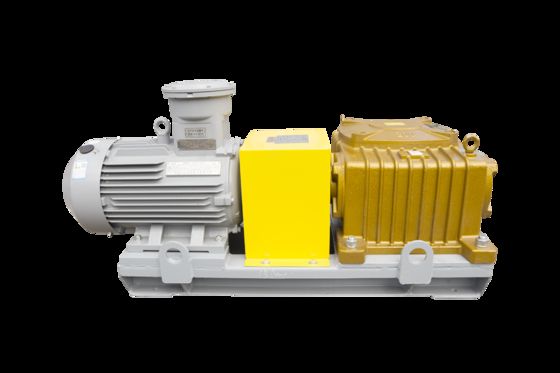

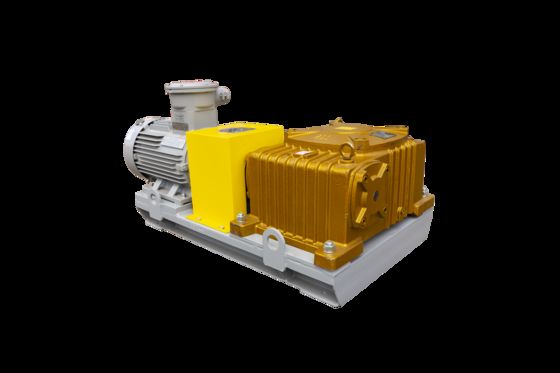

The XBSY JB/W series mud agitator ensures consistent drilling fluid homogeneity and solid suspension through its inclined blade design. Engineered for reliability, it operates at 57 RPM (50Hz) or 71 RPM (60Hz) with a 2870 impeller discharge capacity. The worm/turbine reducer minimizes noise and maintenance needs, while the 500mm impeller diameter optimizes mixing efficiency. Suitable for both land-based tanks and offshore platforms, models range from JB/W2.2 to JB/W22 (2.2-22KW), supporting global power grid standards. Weight: 135kg; Dimensions: 817×494×498mm.
Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.
| Model | Motor Power | Motor Speed | Impeller Speed (rpm) | Impeller Discharge | Impeller Diameter (mm) | Weight (kg) | L × W × H (mm) | ||
| / | / | / | 50HZ | 60HZ | / | Single Impeller | Double Impeller | / | / |
| JB / W2.2 | 2.2 | 1420 / 1740 | 57 or 71 | 70 | 2870 | 500 | - | 135 | 817×494×498 |
