| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

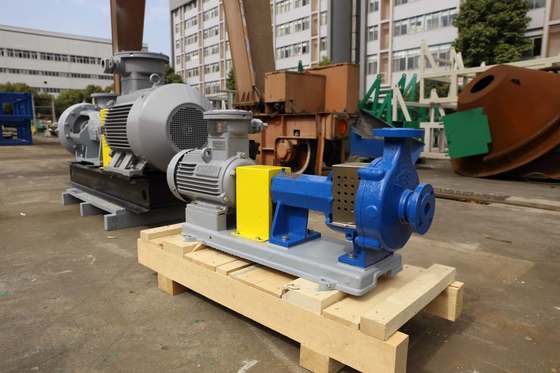

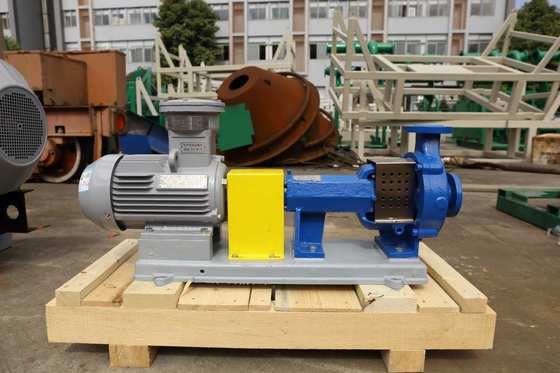

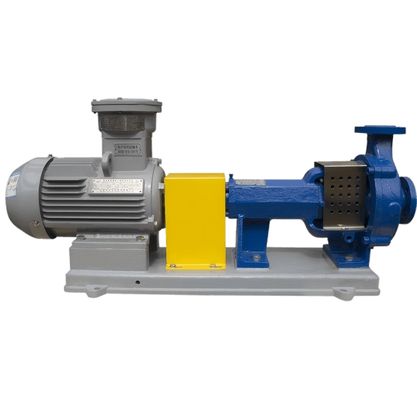

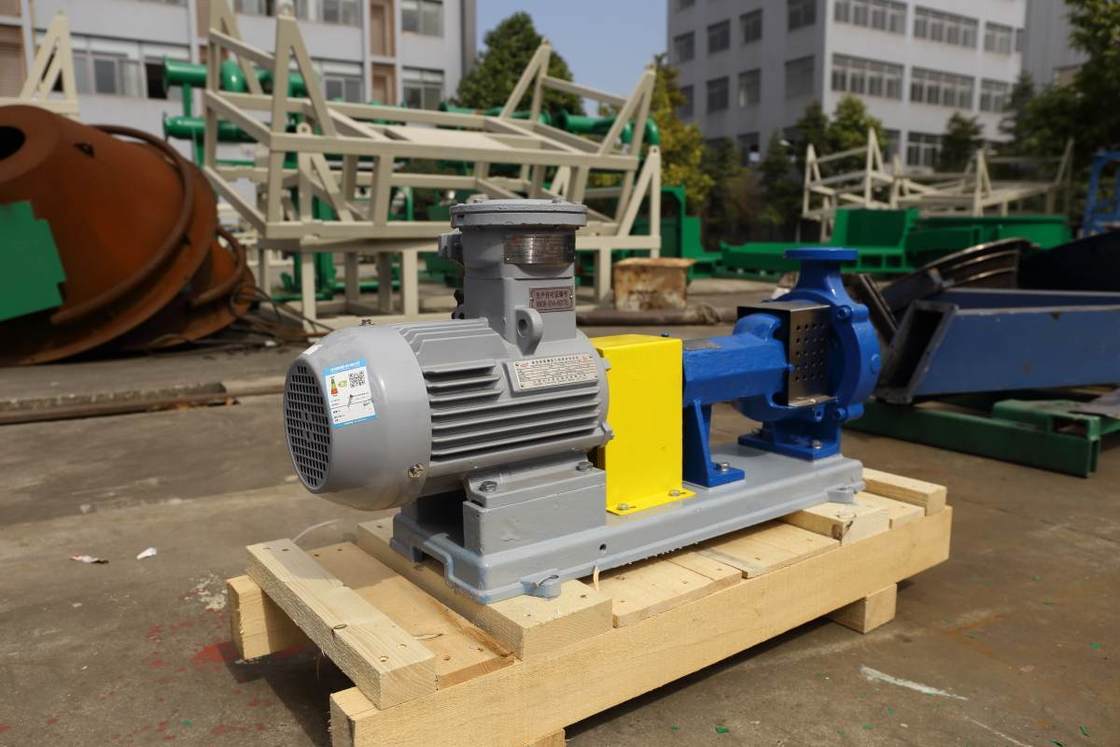

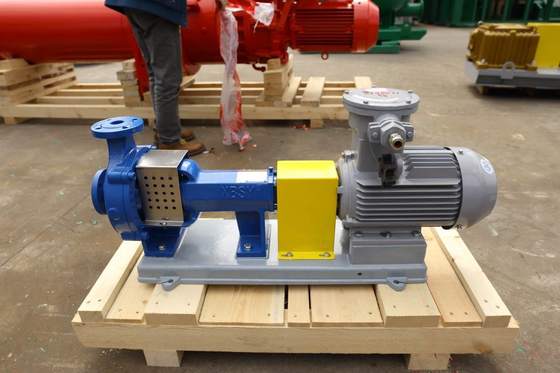

Featuring a bidirectional straight-blade impeller, this pump supports both clockwise and counterclockwise rotation for flexible installation in confined rig spaces. The compact architecture (Patent No. ZL200730094452.1) optimizes footprint while maintaining 53% hydraulic efficiency. Models 40SB180J-3 and 40SB180J-4 achieve flows of 15-20m³/h at 10m head, powered by 3-4kW motors operating at 1,420-1,750 rpm.Constructed with wear-resistant flow components, the spray pump handles abrasive drilling fluids without clogging. Oil-lubricated bearings and a sealed shaft assembly prevent contamination. The 40SB180J-3 model (135kg) and 40SB180J-4 (160kg) offer robust cooling with dimensions under 1,024×372×528mm, ensuring compatibility with F-series mud pumps.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2).
Bi-directional Rotation - Straight blade design, forward and reverse rotation are available.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m3 /h) | Head (m) | Rotational Speed (rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L × W × H (mm) | ||
| 40SB180J-3 | 15 | 10 | 1420 | 1750 | 53 | 0.78 | 3 | 135 | 994×372×480 |
| 40SB180J-4 | 20 | 10 | 1420 | 1750 | 53 | 1.0 | 4 | 160 | 1024×355×528 |
