| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

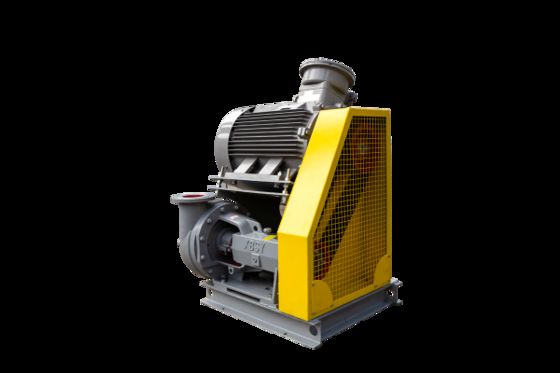

Constructed with stainless steel impeller and shear plate components combined with high wear-resistant cast iron overflow parts, this pump delivers exceptional durability. The robust design withstands corrosive drilling environments while maintaining optimal performance through extended service intervals, reducing maintenance requirements and downtime.The WJQ5×6J-45 model operates at 1760 RPM with 120m³/h flow capacity and 19m head pressure. Achieving 28% operational efficiency with 22.2kW shaft power, this compact unit (1000×1240×1378mm) weighs just 960kg, making it ideal for space-constrained drilling installations without compromising performance.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Shearing Efficiency - Special impeller and shear plate are used - shearing efficiency≥95%.
Long Service Life - The impeller and shear plate are made of stainless steel, and the rest of the overflow parts are made of high wear-resistant cast iron.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed (rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L × W × H (mm) | |
| / | / | / | / | / | Shaft power | Motor Power | / | / |
| WJQ5 × 6J-45 | 120 | 19 | 1760 | 28 | 22.2 | 45 | 960 | 1000×1240×1378 |
