| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

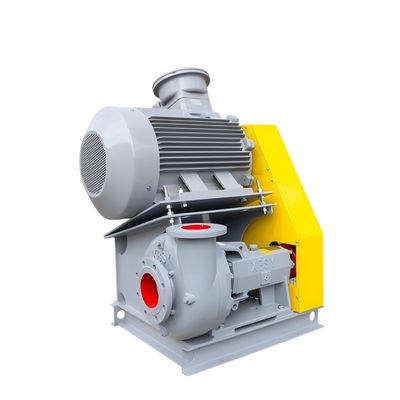

XBSY shear pump is specialized in processing drilling fluid additives, polymers and clays, which can improve drilling fluid performance and reduce processing time.
XBSY WJQ series shear pump has four specifications according to the supporting power from 37kW to 75kW and can be adapted to the needs of both 50 and 60Hz power grids, with two standards of metric and imperial respectively.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Shearing Efficiency - Special impeller and shear plate are used - shearing efficiency≥95%.
Long Service Life - The impeller and shear plate are made of stainless steel, and the rest of the overflow parts are made of high wear-resistant cast iron.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed (rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L × W × H (mm) | |
| / | / | / | / | / | Shaft power | Motor Power | / | / |
| WJQ5 × 6J-55 | 140 | 25 | 2015 | 28 | 34 | 55 | 1100 | 1038×1178×1437 |
