| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

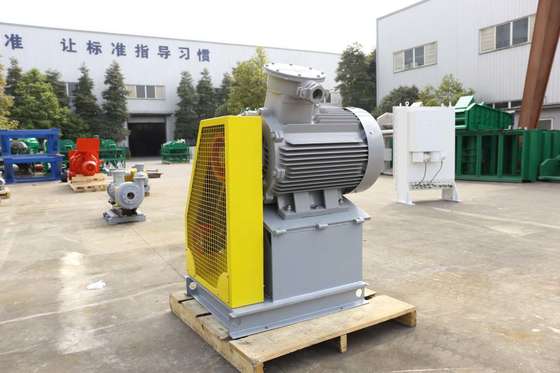

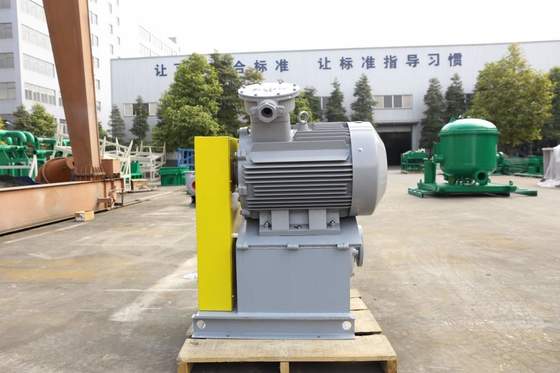

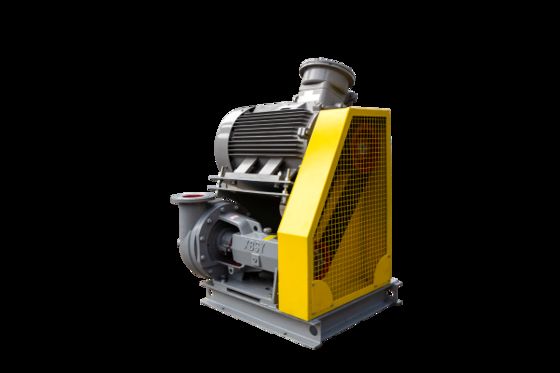

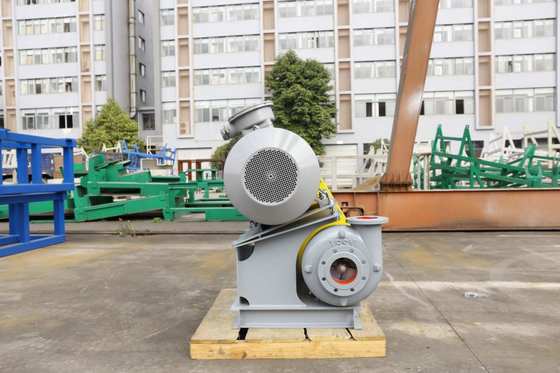

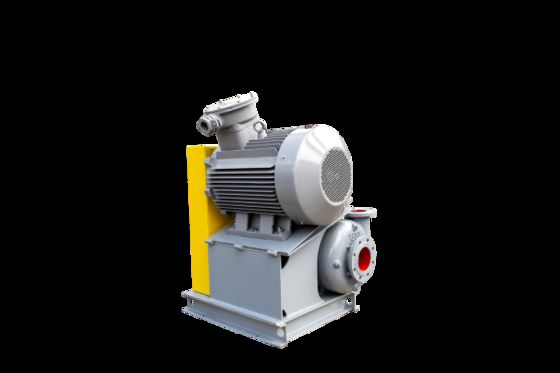

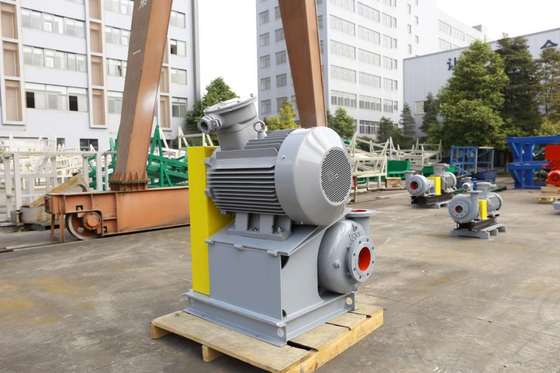

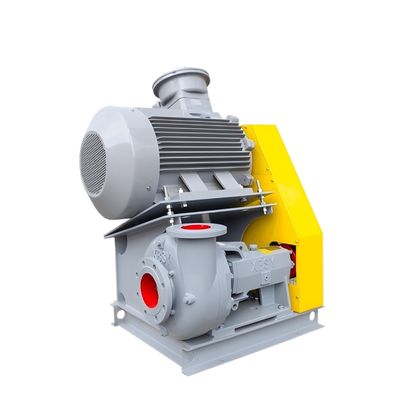

The XBSY WJQ series shear pump revolutionizes drilling fluid conditioning with targeted polymer/clay processing. Engineered for high-viscosity mud systems, it eliminates "fish eyes" and prevents polymer chain agglomeration, accelerating hydration by 40% while reducing bentonite consumption by 15–30% . Its multi-stage shearing mechanism (≥95% efficiency) ensures uniform additive dispersion, slashing mud configuration time by 30% and enhancing fluid-loss control for stable wellbore pressure . Compatible with all water-based/oil-based muds.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Shearing Efficiency - Special impeller and shear plate are used - shearing efficiency≥95%.
Long Service Life - The impeller and shear plate are made of stainless steel, and the rest of the overflow parts are made of high wear-resistant cast iron.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed (rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L × W × H (mm) | |
| / | / | / | / | / | Shaft power | Motor Power | / | / |
| WJQ5 × 6J-75 | 150 | 27 | 2110 | 28 | 39.4 | 75 | 1220 | 1093×1161×1488 |
