| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

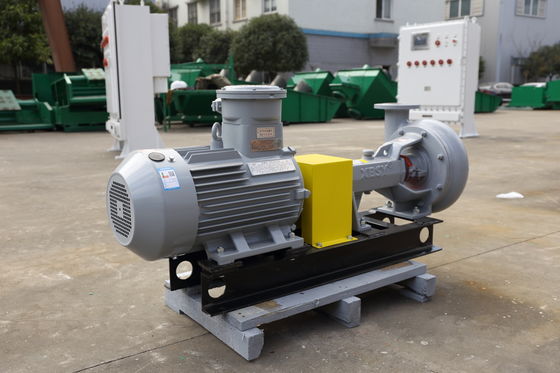

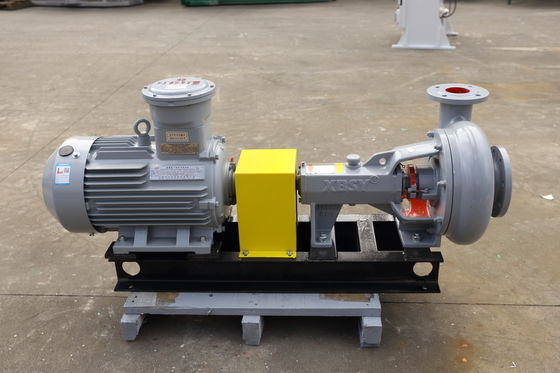

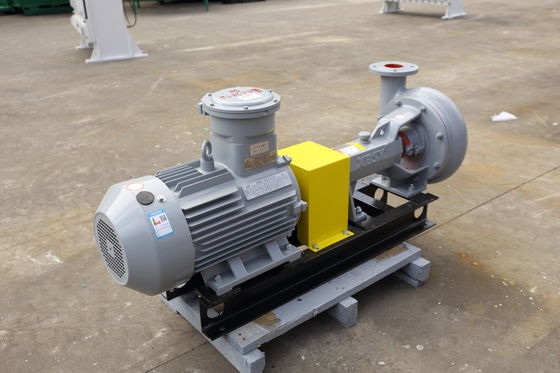

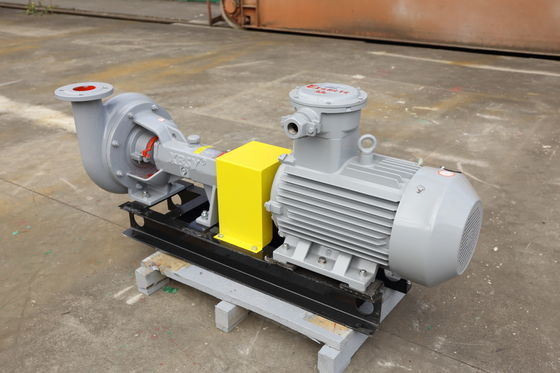

Featuring high-wear-resistant cast iron overflow components, XBSY pumps withstand abrasive drilling fluids with ≤74μm solids. The wide-flow-path impeller prevents clogging with optimized hydraulic geometry, achieving 58% hydraulic efficiency. Patented compact structure (Patent ZL200730094452.1) reduces footprint by 25% versus conventional pumps. Dual power grid compatibility (50Hz/60Hz) and bidirectional rotation simplify global deployment.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB4 × 5J - 9 | 93 | 20 | 1460 | 1760 | 58 | 8.8 | 15 | 400 | 1533×510×725 |
