| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

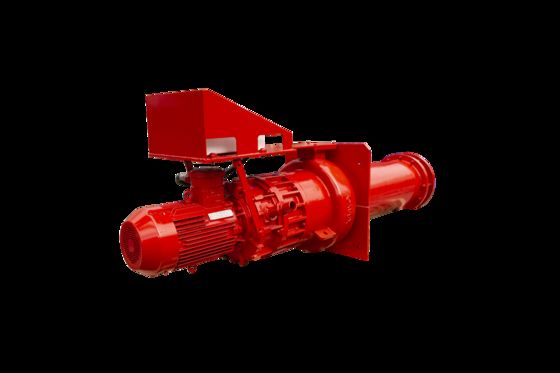

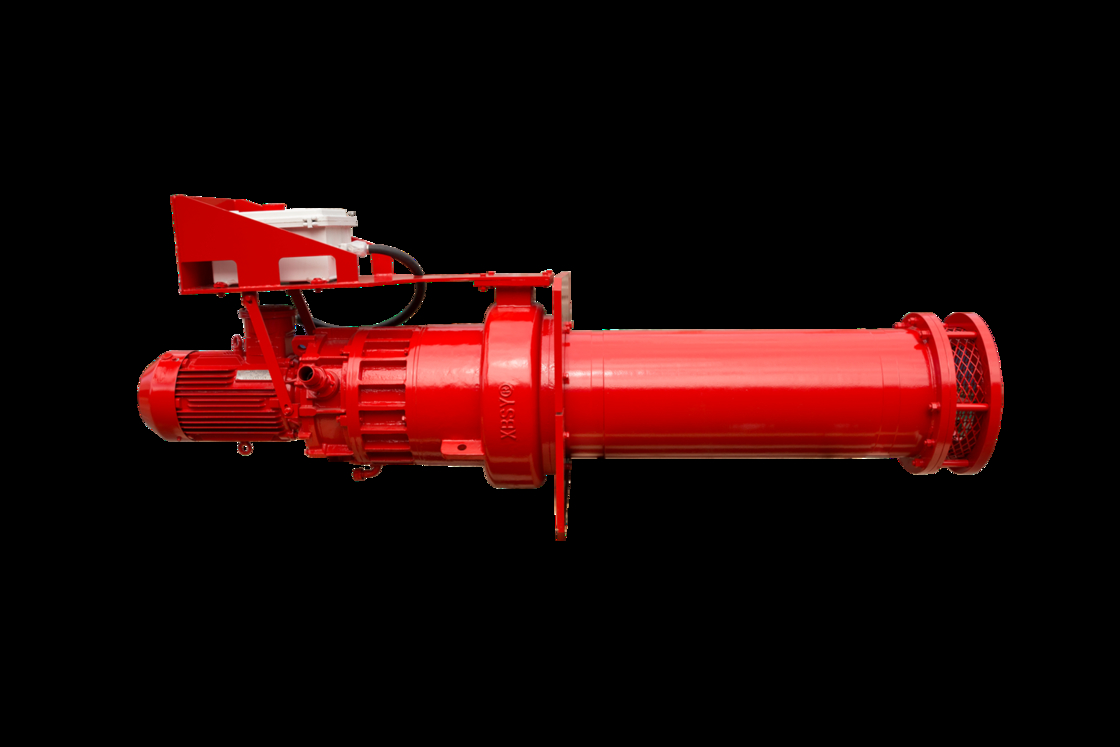

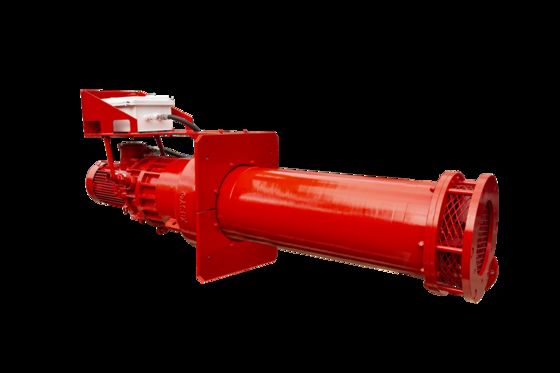

The ZLCQ/240 Vacuum Degasser delivers 240m³/h drilling mud treatment capacity with ≥85% gas removal efficiency. Engineered for deep-well operations, its 18.5kW motor (1450rpm) ensures rapid bubble separation while minimizing energy consumption. The compact footprint (1282×1000×3090mm) and 1580kg weight simplify integration into existing mud systems. Featuring a 150mm discharge port and 1.5m submerged length, it guarantees continuous slurry circulation without clogging. Ideal for high-pressure drilling environments requiring stable mud viscosity and density recovery.
Features
Space-saving - Integrated vertical structure design for degasser and slurry discharge, directly inserted into the slurry for degassing.
High Degassing Efficiency - Adopted unique design of vacuum pump impeller and separation structure.
Large Capacity - Pump-type impeller is used for slurry discharge.
Low Energy Consumption - Low power motor is used.
| Model | ZLCQ / 240 |
| Capacity (m³/ h) | 240 |
| Degas Volume (m 3/ h) | 35 |
| Degassing Efficiency (%) | ≥ 85 |
| Motor Power (kW) | 18.5 |
| Motor Speed (rpm) | 1450 |
| Discharge Port Diameter (mm) | 150 |
| Length Under Liquid (m) | 1.5 |
| L × W × H (mm) | 1282 × 1000 × 3090 |
| Weight (kg) | 1580 |
