| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

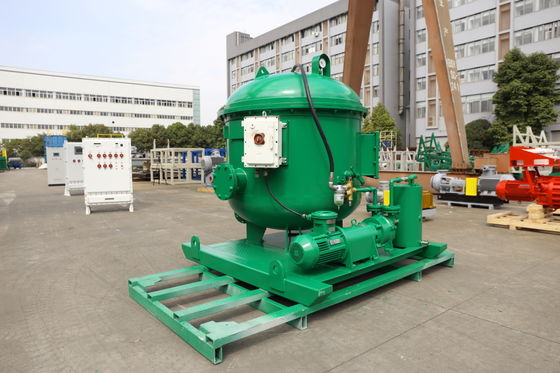

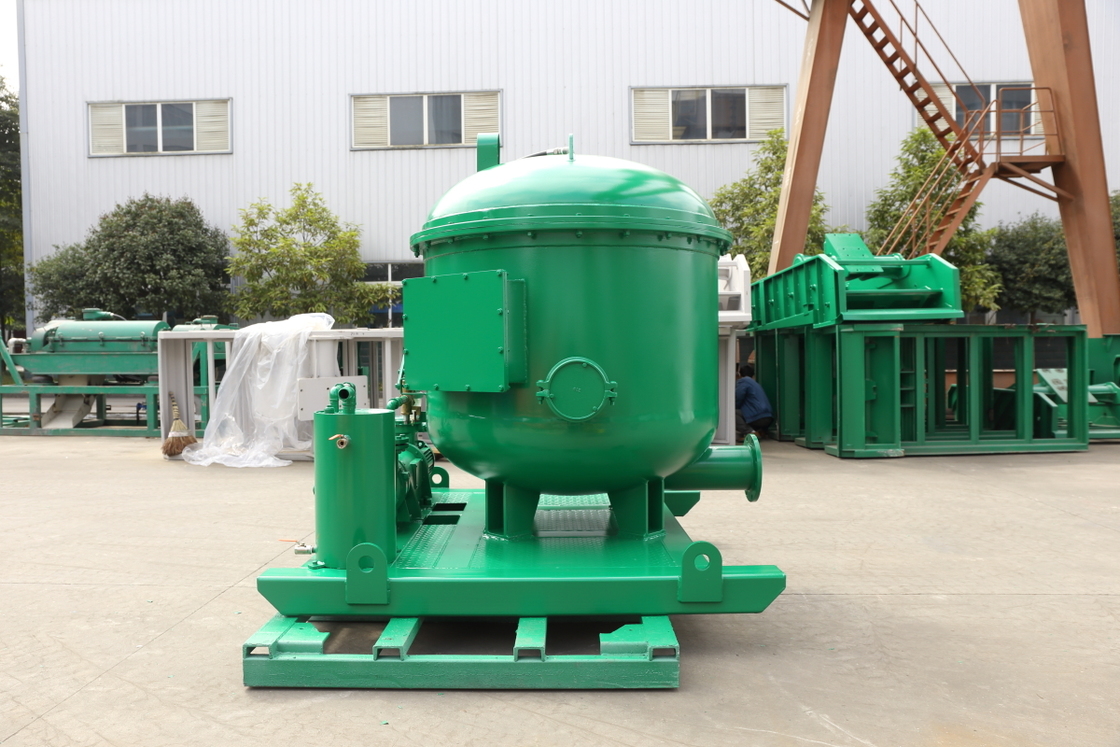

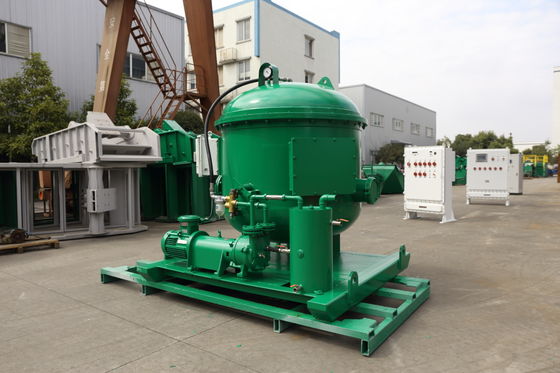

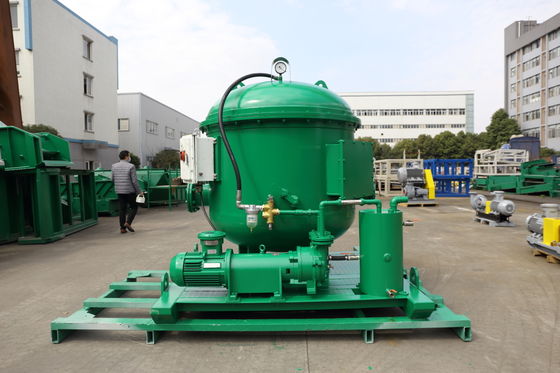

The ZSCQ/180 Vacuum Degasser delivers industry-leading gas separation efficiency (≥92%) for invasive drilling fluids. Its 63000cm² separation area and 0.02–0.04MPa vacuum level ensure rapid removal of entrained gases, stabilizing mud viscosity and restoring density. With integrated heavy-power agitation, the unit eliminates the need for transfer pumps, reducing operational costs. Compatible with 30–37kW centrifugal pumps and a 2890rpm vacuum system, it suits ultradeep and underbalanced drilling. Compact alloy design (2373×1380×1577mm, 1200kg) enables deployment in confined spaces.
Features
High suction efficiency - Water ring vacuum pump is used.
High separation efficiency - Adopting a multi-layer folded parachute separator - Large separation area, high gas separation efficiency.
Automatic control - Stainless steel floating ball is used to adjust the vacuum level automatically.
High treatment capacity - High efficiency jet discharge is used.
Easy maintenance - Designed with wide access ports.
| Model | ZSCQ / 180 |
| Capacity (m³/h) | 180 |
| Separation Area (c㎡) | 63000 |
| Vacuum Level (MPa) | 0.02 ~ 0.04 |
| Separation Efficiency (%) | ≥92 |
| L × W × H (mm) | 2373 × 1380 × 1577 |
| Weight (kg) | 1200 |
| Matching Centrifugal Pumps | |
| Flow (m3 /h) | 180 |
| Lift (m) | 28 ~ 33 |
| Rotational Speed (rpm) | 1480 |
| Mating Power (kW) | 30 ~ 37 |
|
Vacuum Pumps |
|
| Rotational Speed (rpm) | 2890 |
| Mating Power (kW) | 4 |
