| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

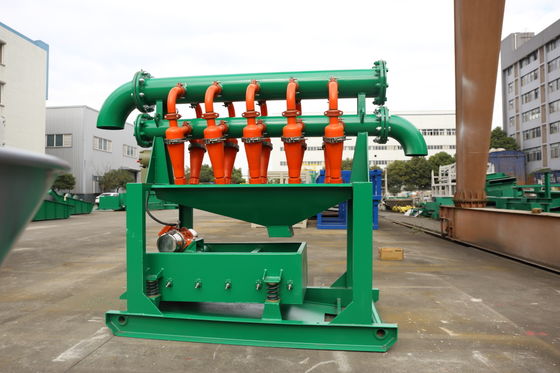

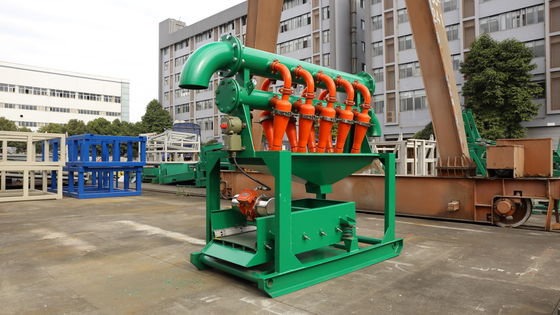

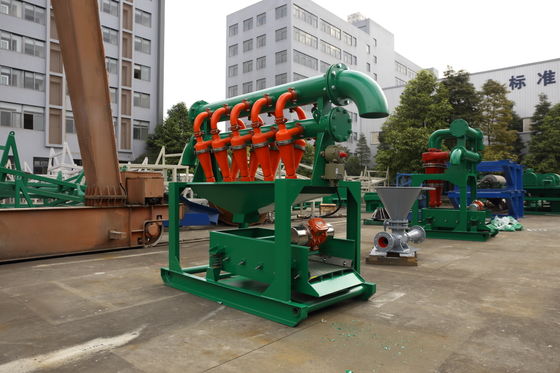

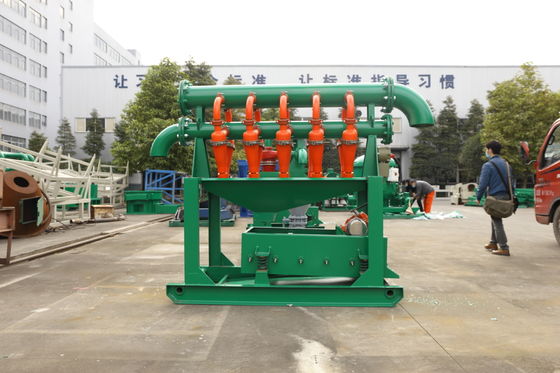

| Product | Desilter |
| Model | CNS / 125 × 10 |
| Vibaration Track | Disequilibrium ellipse |
| Motor Power | 0.4 kW |
| Screen Size | 585 × 1240 mm |
| Screen Number | 1 |
|
Cyclone Specifications |
125 |
| Cyclone Number | 10 |
| Tilt Adjustment Range | / |
| Pressure | 0.15 ~ 0.3 MPa |
| Power | AC 380V / 50HZ |
| Explosion-proof Grade | Ex d II B T4 Gb |
| L×W×H | L 2235 × W 2040 × H 2235 mm |
| Weight | 850kg |
| Notes | 1. The models in the table are only examples, desander cyclone specifications(250/300) and quantities(2/3) can be configured according to user requirements. 2. Desilter cyclone specifications(100/125) and quantities(10/12) can be configured according to user requirements. |
