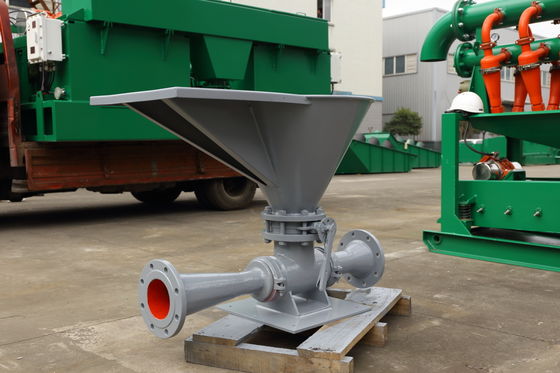

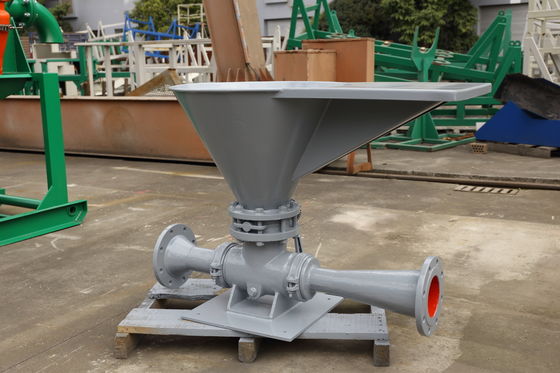

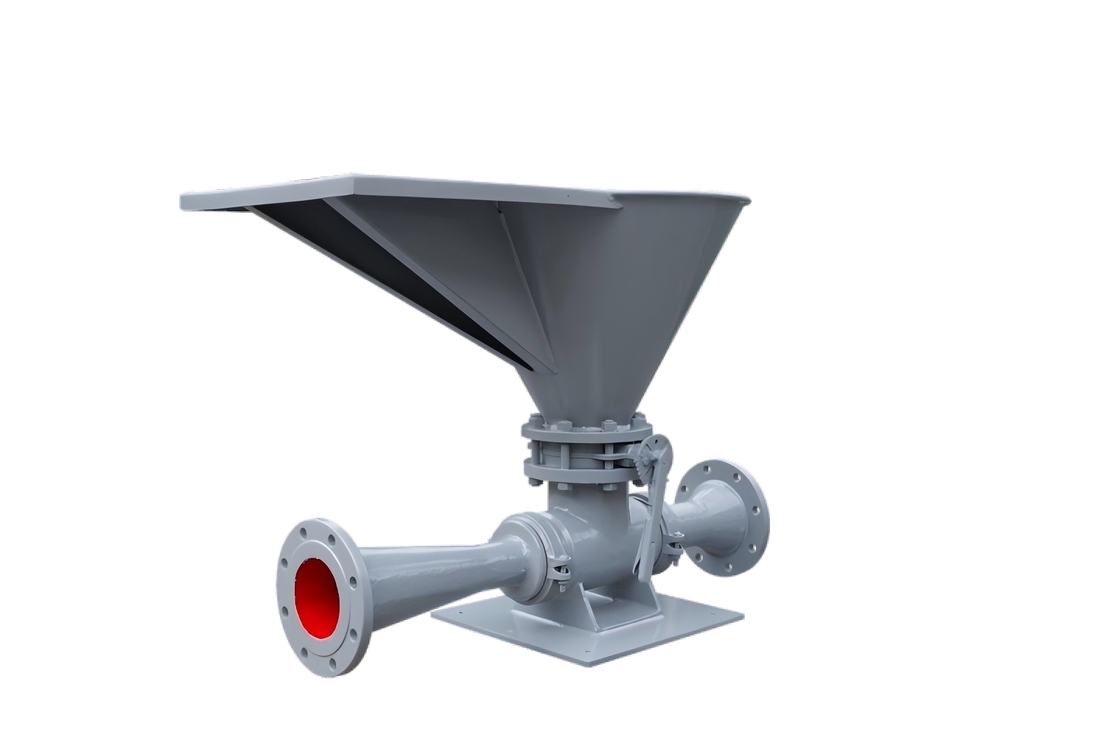

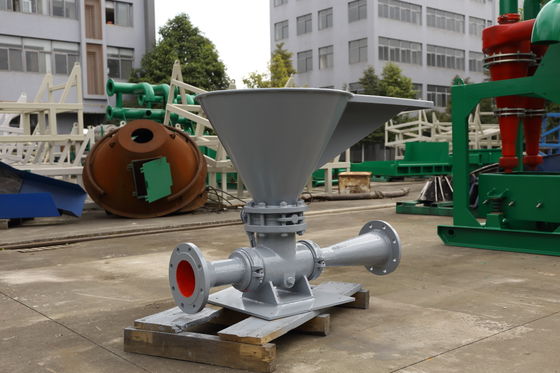

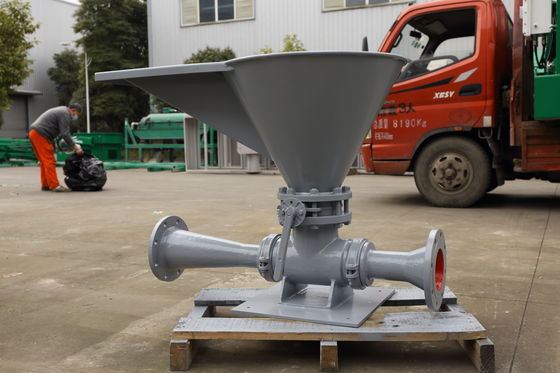

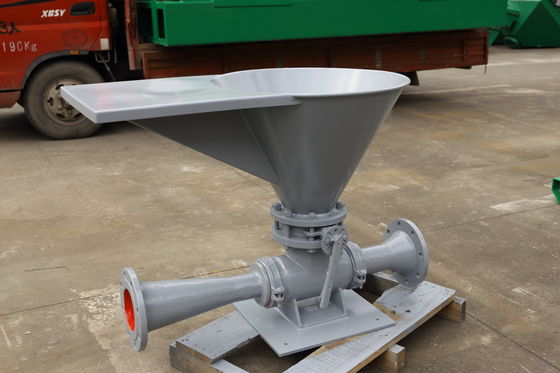

The ZHP 150× jet mixer utilizes a high-velocity nozzle (45m/s) to generate powerful suction, rapidly drawing drilling fluid additives into the mixing chamber. The Venturi tube outlet enhances shear forces, achieving homogeneous blending of polymers and weighting agents within seconds. Ideal for emergency well control operations where mud density must be adjusted immediately. Capacity: 180 m³/h; Head: ≥31m; Power: 45kW. Dimensions: 1292×708×922mm. Weight: 190kg.Equipped with a standard butterfly valve at the material inlet, the ZHP hopper enables single-operator control. The 150mm diameter inlet/outlet ports minimize pressure loss, while the 708mm wide hopper allows bulk additive loading without clogging. Reduces mud preparation time by 70% compared to manual mixing methods, critical for high-pressure well interventions.
Features
Fast Refilling – High-speed jet nozzle is adopted, with strong suction power.
High Mixing Capacity - Venturi tubes are used in the outlet section.
Easy to Operate - Standard butterfly valve is used at the material inlet.
| Model | Capacity (m³/h) | Head (m) | Hopper Diameter (mm) | Inlet Diameter | Outlet Diameter | Power (kW) | Weight (kg) | L × W × H (mm) |
| ZHP 150 × | 180 | ≥ 31 m | 708 | 150 | 150 | 45 | 190 | 1292×708×922 |
