| Brand Name: | XBSY |
| Model Number: | JB / W22 |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

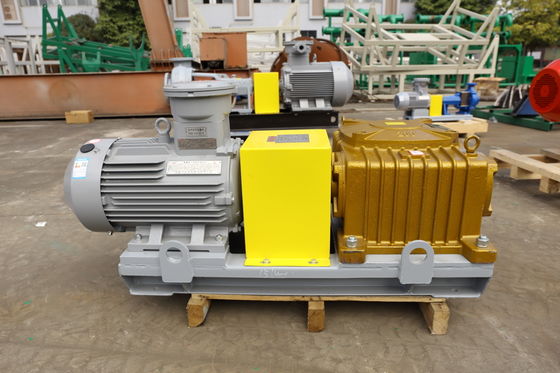

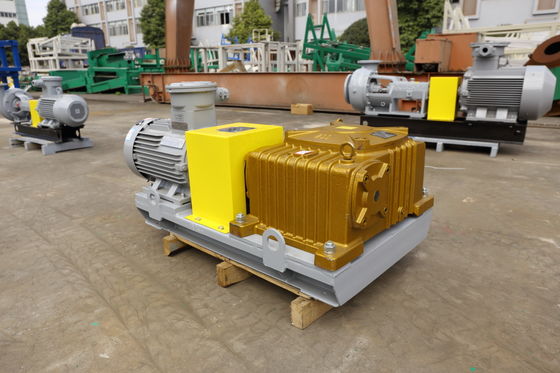

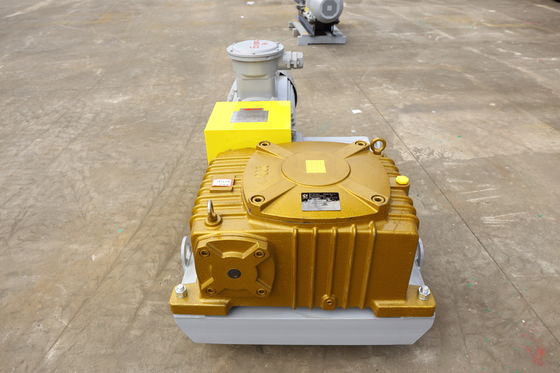

High-Efficiency JB/W22 Drilling Fluid Agitator with 22kW Motor and 59–74 RPM Operating Speed
The JB/W22 mud agitator is an essential mixing unit in drilling fluid solids control systems. It is primarily used to keep drilling mud evenly mixed, prevent solid particles from settling, and maintain consistent fluid properties during continuous drilling operations. Its efficient mixing performance helps ensure stable and reliable circulation of drilling fluids.
The XBSY JB/W Series Mud Agitators are available in both single-wave-wheel and double-wave-wheel configurations, providing flexible options for different drilling fluid mixing requirements. The series includes JB/W2.2, JB/W3, JB/W5.5, JB/W7.5, JB/W11, JB/W15, JB/W18.5, and JB/W22 models. These agitators are designed to operate with both 50 Hz and 60 Hz power supplies, making them suitable for a wide range of drilling applications and operating environments.
Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.
| Model | Motor Power | Motor Speed | Impeller Speed (rpm) | Impeller Discharge | Impeller Diameter (mm) | Weight (kg) | L × W × H (mm) | ||
| / | / | / | 50HZ | 60HZ | / | Single Impeller | Double Impeller | / | / |
| JB / W22 | 22 | 1470 / 1780 | 59 or 74 | 71 | 43760 | 1240 | U1140/L760 | 815 | 1465×888×770 |
video
video
