2550mm 900RPM Drill Cuttings Dryer Drilling Waste Management System

2550mm 900RPM Drill Cuttings Dryer Drilling Waste Management System

Brand Name: XBSY
MOQ: 1
Price: Price Negotiable
Payment Terms: TT
Supply Ability: 1000
Detail Information
Place of Origin:
Sichuan,China
Certification:
USE 18000,USE14000,EAC,CE,ISO9000
Document:
Decanter Centrifuge:
Optional
Application:
Drilling Waste Management
Rotation Speed:
900 RPM
Dimension:
2550x1900x1800mm
Material:
Stainless Steel
Weight:
2800Kg--5000Kg
Drilling Cutting Type:
Oil-Based,water Based
Packaging Details:
Ply Wood Box,iron box
Highlight:

2550mm Drilling Waste Management System

,

900RPM Drilling Waste Management System

,

900RPM Drill Cuttings Dryer

Product Description

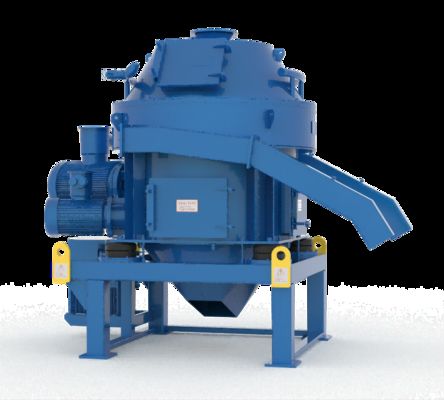

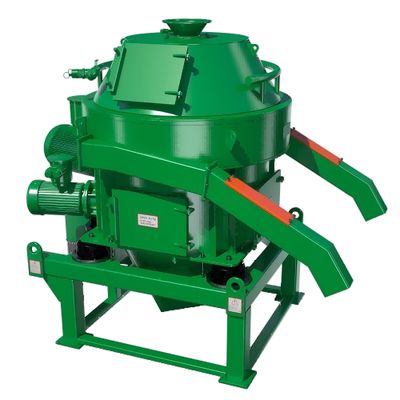

XBSY Drill Cuttings Dryer for Oil-Based and Water-Based Drilling Mud Processing

XBSY drill cuttings dryer, as the fourth generation of the development of the dryer, represents the cutting-edge technology level in this field. This cuttings dryer, commonly known as a vertical cutting dryer, adopts dual motors to drive the screen basket and scraper and realizes adjustable and controllable spindle speed and differential speed through dual frequency conversion. This can adapt to the processing of oil-based drilling mud and water-based drilling mud under multiple working conditions to effectively reduce the water content of cuttings and the cost.

2550mm 900RPM Drill Cuttings Dryer  Drilling Waste Management System 0Features
Large processing capacity, strong anti-blocking ability, and compact design.
High strength wear-resistant scraper and basket - ensure long service life.
Double frequency conversion speed control, logic controller, multiple safety protection.
Integrated lubrication design - easy installation and maintenance.
Anti-corrosion coating process - adapt to various harsh environments.

2550mm 900RPM Drill Cuttings Dryer  Drilling Waste Management System 1
