LW350×1435E Decanter Centrifuge for Municipal Wastewater Sludge Dewatering | High-Efficiency TSS Removal

Municipal Wastewater Sludge Dewatering | 99.5% TSS Removal | Energy-Efficient Operation

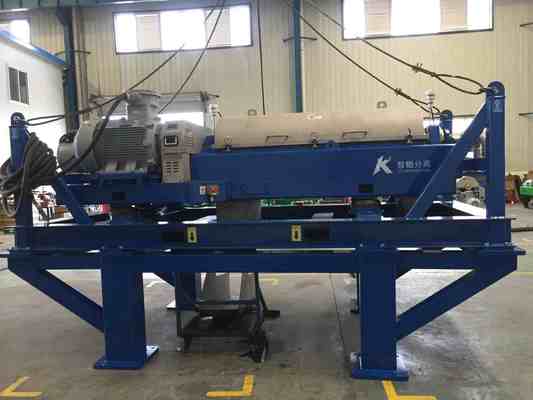

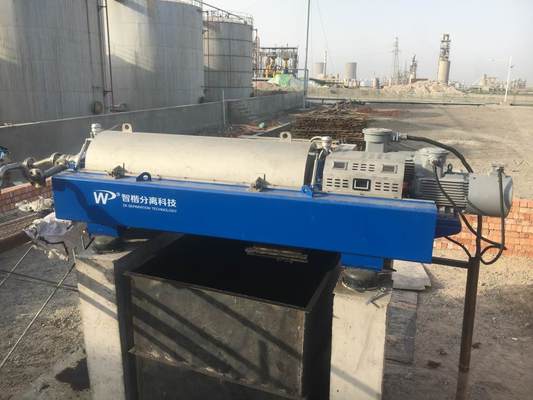

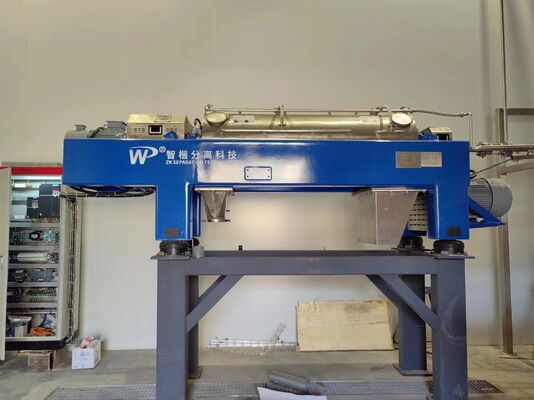

The ZK LW350×1435E decanter centrifuge is designed for sludge dewatering in municipal wastewater treatment plants, helping improve effluent clarity and support discharge compliance. With a separation factor of 2435 G at 3500 RPM, the centrifuge is suitable for sludge with solids concentrations ranging from 0.8–5%.

The equipment uses SS316L and SS2205 duplex stainless steel components, providing resistance to abrasion, chlorides up to 50,000 ppm, and demanding pH conditions from 1–12. This makes the centrifuge suitable for continuous wastewater sludge treatment under challenging operating conditions.

The integrated PLC control system can respond to changes in feed flow and optimize polymer dosing and operating conditions. Real-time monitoring helps reduce manual intervention, while the VFD drive is designed to reduce energy consumption compared with conventional operating configurations.

Optional IoT-ready sensors can also be integrated for maintenance monitoring and cloud-based analytics, supporting more convenient equipment management.

Features

• Remove up to 99.5% of total suspended solids (TSS) in optimized wastewater treatment processes—ensuring gh-effluent clarity and regulatory compliance.
• Engineered for continuous 24/7 operation, with over 99% system uptime to support critical wastewater treatment processes.
• Smart automation adjusts in real time to sfting flow rates, cutting manual monitoring and keeping your plant stable and efficient—day and night.
• Modular design enables scalable system expansion—whether adding throughput capacity or integrating with existing wastewater treatment lines.
• Equipped with energy-efficient VFD drive systems, our centrifuges reduce power consumption by up to 25% compared to conventional models—lowering long-term operating costs.
• Key components are built from duplex stainless steel (SS316L/SS2205), providing exceptional resistance to corrosion, abrasion, and chemical attack—ideal for harsh wastewater environments.


  Parameter

  		Model
  			LW350×1435E
  Capacity	Solid Content	0.8~1%	10~15
  		1~2%	8~10
  		2~4%	5~8
  		4~5%	4~5
  Bowl Diameter(mm)			350
  Length-Diameter Ratio(mm)			4.1
  Speed(rpm)			3500
  Designed Separation Factor			2435
  Differential Speed(rpm)			1~35
  Differential Maximum Torque(Nm)			2500
  Main Motor power(KW)			15~22
  Back motor power(kW)			5.5
  Total Length(mm)			3700
  Width(mm)			1050
  Height(mm)			1200
  Weight(Kg)			2500
