| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |
Certified for hazardous environments (Ex d II B T4 Gb), the motor housing prevents ignition risks in oil/gas zones. The full-wrap anti-splash enclosure reduces mud leakage by 70%, protecting operators and equipment. Dual-bearing support and mechanical seals eliminate lubricant contamination, complying with ISO 9001 safety standards for petroleum machinery.
Pre-assembled skid base enables plug-and-play installation in 3 hours. Compatible with all major shale shaker brands via standardized flange connections. Integrated control panel with overload alerts and auto-shutdown functions. Optional IoT sensors for real-time monitoring of pressure and solids content.

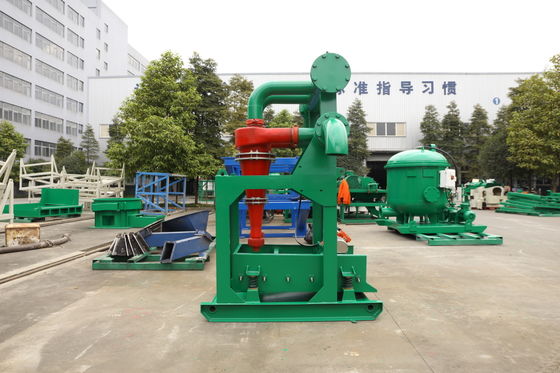

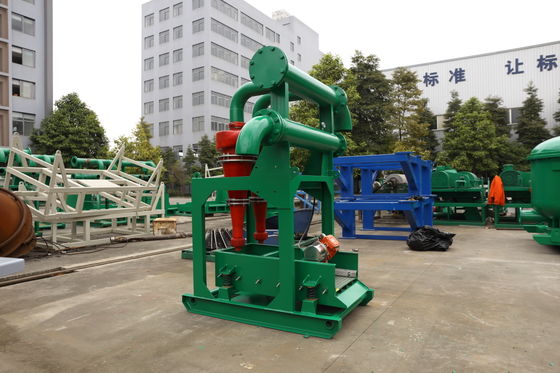

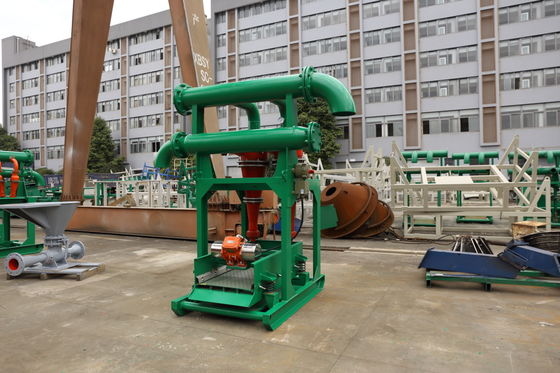

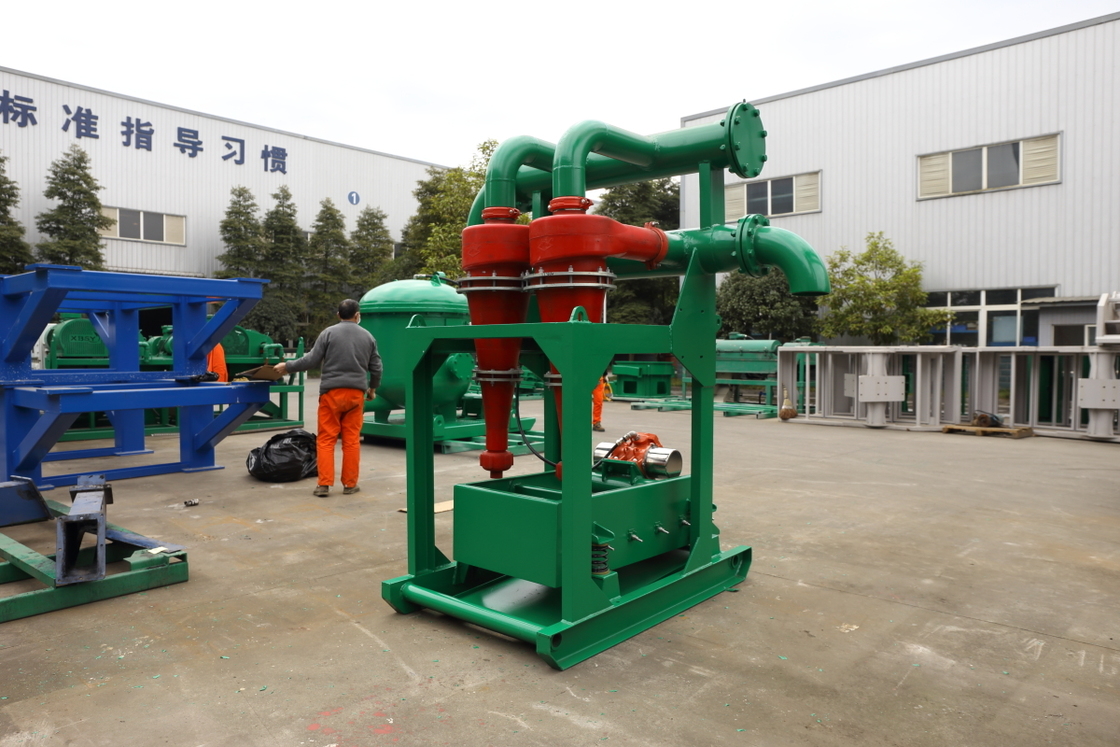

| Product | Desander |
| Model | CSS / 250 × 3-A |
| Vibaration Track | Liner |
| Motor Power | 2 × 0.75 kW |
| Screen Size | 1053 × 697 mm |
| Screen Number | 2 |
|
Cyclone Specifications |
250 |
| Cyclone Number | 3 |
| Tilt Adjustment Range | -1° ~ +5° |
| Pressure | 0.15 ~ 0.3 MPa |
| Power | AC 380V / 50HZ |
| Explosion-proof Grade | Ex d II B T4 Gb |
| L×W×H | L 1990 × W 1000 × H 1995 mm |
| Weight | 1150kg |
| Notes | 1. The models in the table are only examples, desander cyclone specifications(250/300) and quantities(2/3) can be configured according to user requirements. 2. Desilter cyclone specifications(100/125) and quantities(10/12) can be configured according to user requirements. |
