| Brand Name: | XBSY |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | TT |
| Supply Ability: | 1000 |

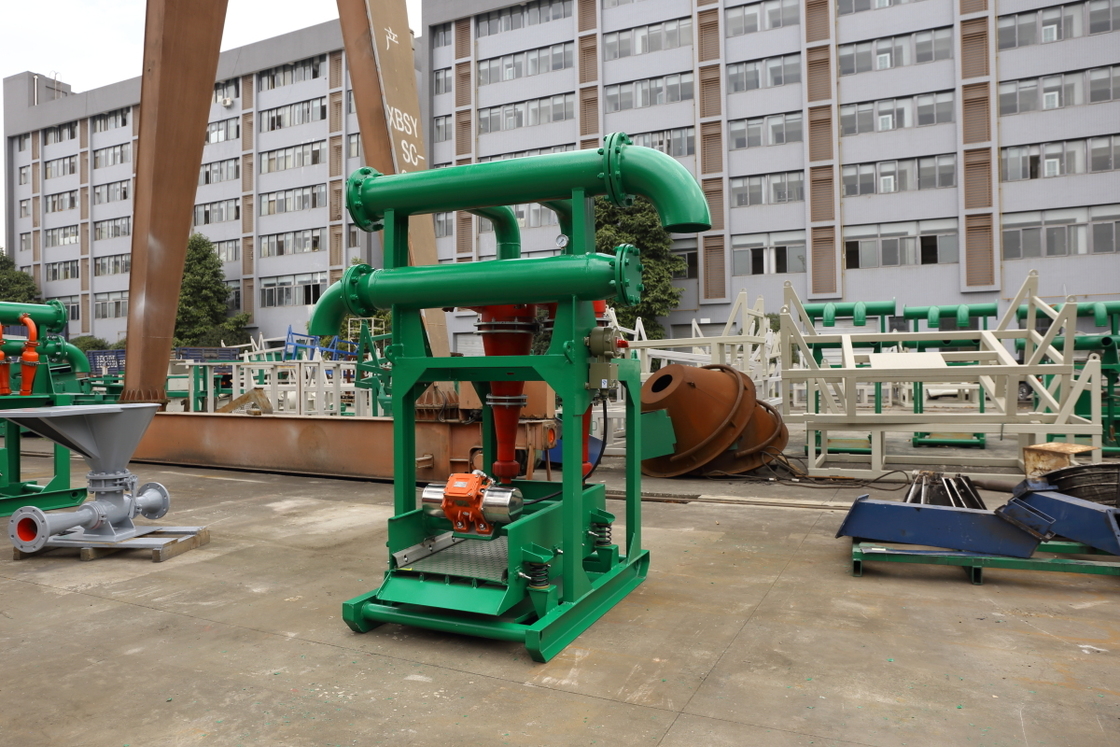

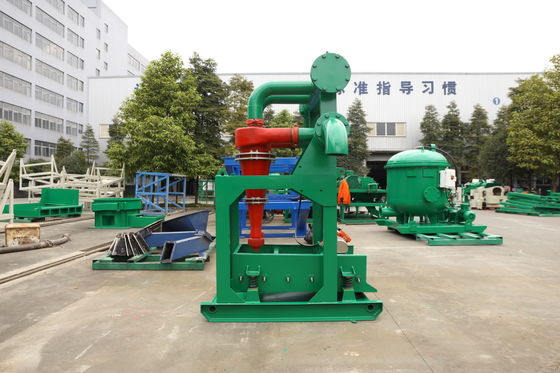

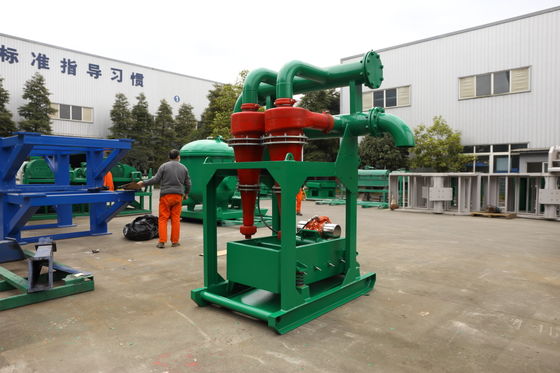

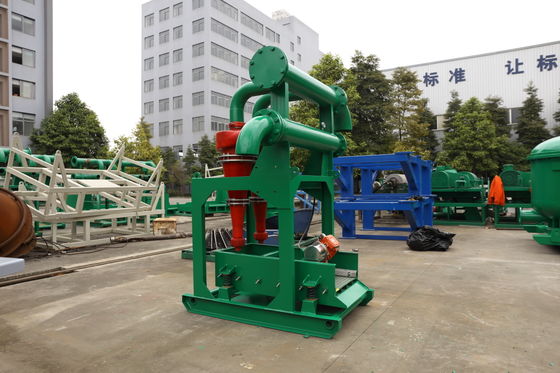

Our CSS/300×2 Desander Centrifugal Pump integrates desanding cyclones and shale shaker technology for efficient drilling fluid processing. The primary cyclone separates coarse solids (＞48 mesh), directing overflow back to circulation and bottom flow to secondary screening. Featuring a 0.4kW explosion-proof motor (Ex d II B T4 Gb) and 600×1300mm replaceable frame screen, it operates at 0.15–0.3MPa pressure. The compact design (1625×1470×2215mm) reduces footprint, while heavy-duty coating ensures corrosion resistance in offshore/onshore rigs.
Engineered for 24/7 drilling operations, this pump utilizes anti-loosening thread technology to withstand high-frequency vibrations. The patented fast-pressing screen mechanism allows tool-free replacement in minutes, minimizing downtime. All-welded steel frame (1050kg) and wear-resistant ball cast iron components extend service life by 40% compared to conventional models, even with abrasive slurries containing coarse particles.
| Product | Desander |
| Model | CSS / 300 × 2 |
| Vibaration Track | Disequilibrium ellipse |
| Motor Power | 0.4 kW |
| Screen Size | 600 × 1300 mm |
| Screen Number | 1 |
|
Cyclone Specifications |
300 |
| Cyclone Number | 2 |
| Tilt Adjustment Range | / |
| Pressure | 0.15 ~ 0.3 MPa |
| Power | AC 380V / 50HZ |
| Explosion-proof Grade | Ex d II B T4 Gb |
| L×W×H | L 1625 × W 1470 × H 2215 mm |
| Weight | 1050 kg |
| Notes | 1. The models in the table are only examples, desander cyclone specifications(250/300) and quantities(2/3) can be configured according to user requirements. 2. Desilter cyclone specifications(100/125) and quantities(10/12) can be configured according to user requirements. |
